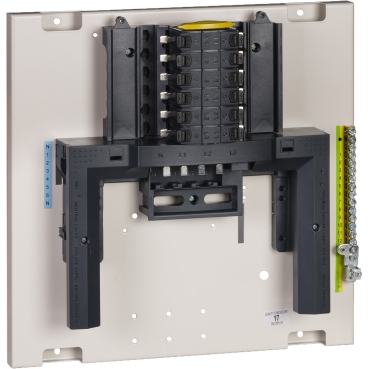

Acti9 Pan assembly 4 ways TP + earth + neutral

Home ProductsCircuit ProtectionActi9Pan assembly

Acti9 Pan assembly 4 ways TP + earth + neutral

Item Number: SEA9BN4PEV

1 PCE 0

Datasheet

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	5018934962719	-

Specifications

Design

Range	Acti9
Product or component type	pan assembly
Device application	distribution

Physical

Range compatibility	Acti 9 Acti9 Isobar B distribution board
Provided equipment	grounding bar neutral bar mounting plate DIN rail
[in] rated current	250 A
Number of poles	12 x 18 mm
Length	346 mm
Width	350 mm
Depth	105 mm
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1602010EN
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
	At least in Europe
Weee label	No
Warranty duration(in months) bmecat	18
Incomer device	4P switch disconnector 4P terminal block 3P + N RCCB 3P + N MCCB 4P contactor
Protection device type	residual current circuit breaker with overcurrent protection (RCBO) 45 A max miniature circuit breaker (MCB) 63 A max
Number of ways	1 way (incomer) - 3P + N + E 4 ways (outgoer)
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	8.0 cm
Package 1 width	15.5 cm
Package 1 length	21.0 cm
Package 1 weight	3.16 kg
Sustainable packaging	No
Packaging made with recycled cardboard	Yes
End of life manual availability	N/A
Warranty (in months)	18

Show all specifications
