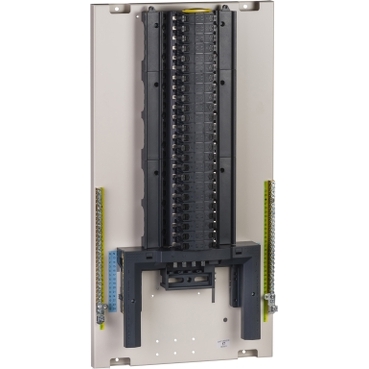

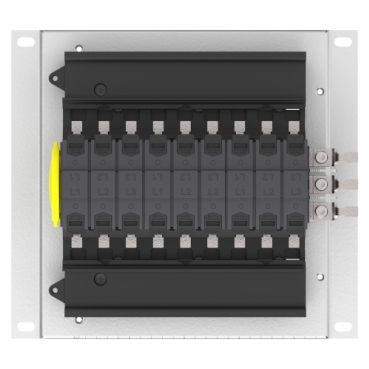

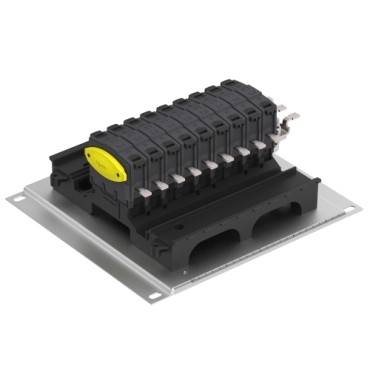

Acti9 Pan assembly 16 ways TP + earth + neutral

Home ProductsCircuit ProtectionActi9Pan assembly

Acti9 Pan assembly 16 ways TP + earth + neutral

Item Number: SEA9BN16PEV

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

pan assembly

Device application

distribution

Physical

Range compatibility

Acti 9 Acti9 Isobar B distribution board

Provided equipment

  • grounding bar
  • neutral bar
  • DIN rail
  • mounting plate

[in] rated current

250 A

Number of poles

48 x 18 mm

Length

671 mm

Width

350 mm

Depth

105 mm

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1809003EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope

Eu rohs directive

Compliant By Exemption

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Average percentage of recycled plastic content

0 %

Package 2 bare product quantity

21

Package 1 bare product quantity

1

Legacy weee scope

Out

At least in Europe

Warranty duration(in months) bmecat

18

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Weee applicability

Finished product

Incomer device

  • 4P switch disconnector
  • 4P terminal block
  • 3P + N RCCB
  • 3P + N MCCB
  • 4P contactor

Protection device type

  • residual current circuit breaker with overcurrent protection (RCBO) 45 A max
  • miniature circuit breaker (MCB) 63 A max

Number of ways

  • 16 ways (outgoer)
  • 1 way (incomer) - 3P + N + E

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

12.000 cm

Package 1 width

40.000 cm

Package 1 length

69.000 cm

Package 1 weight

6.243 kg

Unit type of package 2

PAM

Number of units in package 2

21

Package 2 height

105.000 cm

Package 2 width

100.000 cm

Package 2 length

120.000 cm

Package 2 weight

151.103 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

67 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

30.100128260597852

Carbon footprint of the manufacturing phase [a1 to a3]

30 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

1.445307622099079

Carbon footprint of the distribution phase [a4]

1 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.24305349516420108

Carbon footprint of the installation phase [a5]

0.2 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

18.49300315987108

Carbon footprint of the use phase [b2, b3, b4, b6]

18 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

16.399483017538422

Carbon footprint of the end-of-life phase [c1 to c4]

16 kg CO2 eq.

Pvc free

No

Halogen-free status

Halogen free product

Silicone-free

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

66.68097555527063

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Halogen-free status

Halogen free product

Pvc free

No

Silicone-free

No

End of life manual availability

N/A

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
