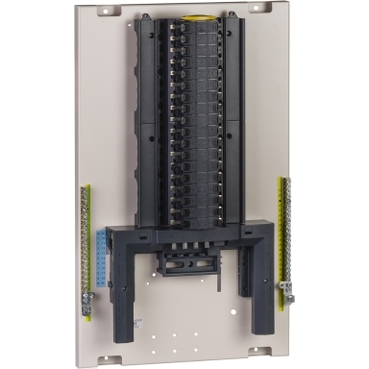

Acti9 Pan assembly 12 way TP+ earth and neutral

Item Number: SEA9BN12PEV

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

pan assembly

Device application

distribution

Physical

Range compatibility

Acti 9 Acti9 Isobar B distribution board

Provided equipment

  • grounding bar
  • neutral bar
  • mounting plate
  • DIN rail

[in] rated current

250 A

Length

571 mm

Width

350 mm

Depth

105 mm

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1809003EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Weee applicability

Finished product

Incomer device

  • 4P switch disconnector
  • 4P terminal block
  • 3P + N RCCB
  • 3P + N MCCB
  • 4P contactor

Protection device type

  • residual current circuit breaker with overcurrent protection (RCBO) 45 A max
  • miniature circuit breaker (MCB) 63 A max

Number of ways

  • 12 ways (outgoer)
  • 1 way (incomer) - 3P + N + E

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

11.0 cm

Package 1 width

39.0 cm

Package 1 length

59.0 cm

Package 1 weight

5.417 kg

Unit type of package 2

PAM

Number of units in package 2

40

Package 2 height

112.0 cm

Package 2 width

100.0 cm

Package 2 length

120.0 cm

Package 2 weight

231.68 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

23 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

2.608388497354387

Carbon footprint of the manufacturing phase [a1 to a3]

3 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.12524610340470957

Carbon footprint of the distribution phase [a4]

0.1 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.021062300317769147

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

18.49300315987108

Carbon footprint of the use phase [b2, b3, b4, b6]

18 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

1.4211309166247454

Carbon footprint of the end-of-life phase [c1 to c4]

1 kg CO2 eq.

Pvc free

No

Halogen-free status

Halogen free product

Silicone-free

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

22.66883097757269

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Halogen-free status

Halogen free product

Pvc free

No

Silicone-free

No

End of life manual availability

N/A

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
