Acti9 Neutral connectors Set of 10 63A

Home ProductsCircuit ProtectionActi9Neutral connectors

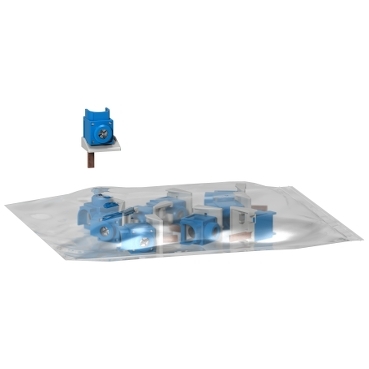

Acti9 Neutral connectors Set of 10 63A

Item Number: A9N21042

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

  • Clario
  • iDPN Vigi

Range

Acti9

Product or component type

connector

Product compatibility

  • iDPN Vigi
  • iDPN

Market segment

small commercial

Warranty

18 months

Physical

Quantity per set

set of 10

Standards

EN/IEC 61439-1

[in] rated current

63 A

Range compatibility

  • Acti9 iDPN comb busbar
  • Acti9 iDPN Vigi comb busbar
  • Multi9 N40 comb busbar
  • Multi9 N40 Vigi comb busbar

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Brand labelled

Substance regulation data deliverable

Yes

Legacy weee scope

Out

Package 1 bare product quantity

1

Package 2 bare product quantity

80

At least in Europe

Weee label

No

Product name

Linergy FH

Accessory / separate part category

connection accessory

Distribution type

  • N + L + auxiliary
  • N + L + Vigi + auxiliary
  • N + L1 + auxiliary
  • N + L1 + Vigi + auxiliary

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.000 cm

Package 1 width

7.000 cm

Package 1 length

10.000 cm

Package 1 weight

105.000 g

Unit type of package 2

S02

Number of units in package 2

80

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

8.985 kg

Sustainable packaging

No

Take-back

No

Packaging made with recycled cardboard

Yes

Scip number

90215406-b6bf-44f8-b463-8540d32a6f6b

Take-back

No

Warranty (in months)

18
Show all specifications
