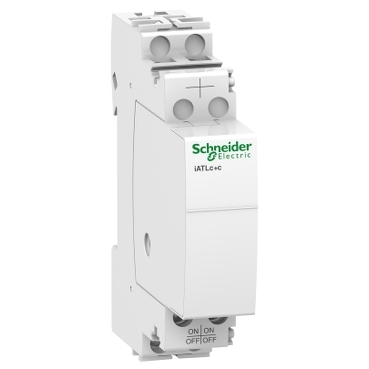

Acti9 Multi-level centralized control iATLc+c
Item Number: A9C15410
This Acti9 iATLc+c is reliable multilevel centralized control auxiliary. Is operates with 24VAC to 240VAC control voltage. Mounting is performed on the right of iATLc+s or iATLc. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. It is associated with iTL impulse relays to allow centralized control of a group of iTLc or iTL+iATLc impulse relays. This product is compliant with EN/IEC 60669-2-2.
Specifications
Design
| Range of product | Acti9 |
|---|---|
| Range | Acti9 |
| Product or component type | multilevel centralized control auxiliary |
| Market segment |
|
| Warranty | 18 months |
Physical
| Remote control type | 2 entries for switch |
|---|---|
| Mounting mode | fixed |
| Mounting support | DIN rail |
| Height | 86 mm |
| Width | 18 mm |
| Depth | 71 mm |
| Connections - terminals |
|
| Wire stripping length | 11 mm |
| Range compatibility |
|
| Ip degree of protection | IP20 conforming to IEC 60529 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -20...50 °C |
| Ambient air temperature for storage | -40...70 °C |
| Standards | EN/IEC 60669-2-2 |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2311015EN |
| China rohs regulation | X |
| Eu rohs directive | Compliant |
Documents & downloads
-
All
-
CAD Files and Packs
-
Environmental Disclosure
-

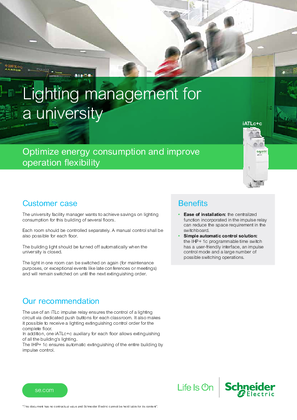

Application Notes
-
