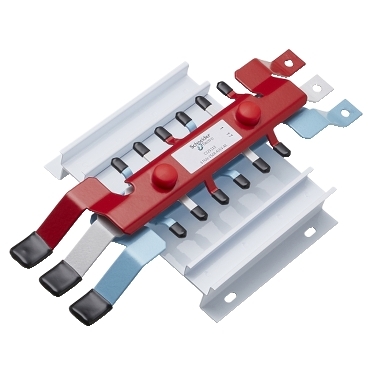

Acti9 DB MSC27 Chassis 3PH 250A 12P DF

Item Number: C125123

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9321243000970	-

Specifications

Design

Range	Acti9
Product or component type	chassis
Device application	distribution

Physical

Range compatibility	Acti 9 Acti9 Isobar B distribution board
[in] rated current	250 A
Number of poles	12 x 27 mm
Length	164 mm
Width	215 mm
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1809003EN
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope	Out
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Average percentage of recycled plastic content	0 %
Average percentage of bio-based plastic content	0 %
Package 1 bare product quantity	1
	Outside of Europe
Device short name	MSC 27
Short-circuit withstand	25 kA 0.1 s
Number of ways	1 way (incomer) - 3P 12 ways (outgoer)
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	9.4 cm
Package 1 width	24.6 cm
Package 1 length	44.4 cm
Package 1 weight	453.592 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	22 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	2.18695777318294
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.105010407644268
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0176593177924908
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	18.493003159871
Carbon footprint of the use phase [b2, b3, b4, b6]	18 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	1.19152239322301
Carbon footprint of the end-of-life phase [c1 to c4]	1 kg CO2 eq.
Pvc free	No
Silicone-free	No
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	21.9941530517137
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Pvc free	No
Silicone-free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
