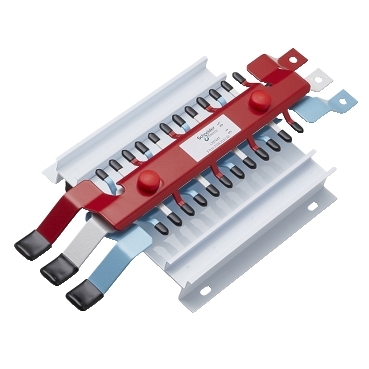

Acti9 DB MSC18 Chassis 3PH 250A 24P DF

Home ProductsCircuit ProtectionActi9MSC18 Chassis

Acti9 DB MSC18 Chassis 3PH 250A 24P DF

Item Number: C325243

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

chassis

Device application

distribution

Physical

Range compatibility

Acti9 Acti9 Isobar B distribution board

[in] rated current

250 A

Rated voltage

415 V AC 50 Hz

Number of poles

24 x 18 mm

Length

218 mm

Width

215 mm

Standards

AS/NZS 61439

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2304022EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

Outside of Europe

Weee label

N/A

Weee applicability

Finished product

Device short name

MSC 18

Short-circuit withstand

25 kA 0.1 s

[icw] rated short-time withstand current

25 kA

[ui] rated insulation voltage

500 V

[uimp] rated impulse withstand voltage

6 kV

Number of ways

  • 1 way (incomer) - 3P
  • 24 ways (outgoer)

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.5 cm

Package 1 width

24.0 cm

Package 1 length

50.8 cm

Package 1 weight

2.154 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

43 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

9.92910286495622

Carbon footprint of the manufacturing phase [a1 to a3]

10 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.628181099634452

Carbon footprint of the distribution phase [a4]

0.6 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.373014060881993

Carbon footprint of the installation phase [a5]

0.4 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

27.365

Carbon footprint of the use phase [b2, b3, b4, b6]

27 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

5.17609896356538

Carbon footprint of the end-of-life phase [c1 to c4]

5 kg CO2 eq.

Pvc free

No

Halogen-free status

Halogen free product

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

43.47139698903804

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Halogen-free status

Halogen free product

Pvc free

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
