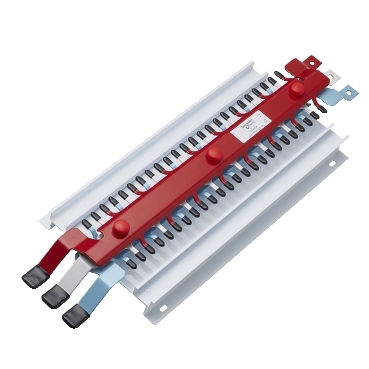

Acti9 MSC Chassis 3PH 400A, 18mm for iC60 MCB & RCBO, 48 poles, Dual Feed

Item Number: C3254834

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606481063076	-

Specifications

Design

Range	Acti9
Product or component type	chassis
Device application	distribution

Physical

Range compatibility	Acti 9 Acti9 Isobar B distribution board
[in] rated current	400 A
Number of poles	48 x 18 mm
Length	434 mm
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1809003EN
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	Outside of Europe
Package 1 bare product quantity	1
Legacy weee scope	Out
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Device short name	MSC 18
[icw] rated short-time withstand current	25 kA
Number of ways	1 way (incomer) - 3P 48 ways (outgoer)
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	10.0 cm
Package 1 width	72.0 cm
Package 1 length	24.0 cm
Package 1 weight	4.023 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	50 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	19.3965747224707
Carbon footprint of the manufacturing phase [a1 to a3]	19 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.931358731972544
Carbon footprint of the distribution phase [a4]	0.9 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.156624092751174
Carbon footprint of the installation phase [a5]	0.2 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	18.493003159871
Carbon footprint of the use phase [b2, b3, b4, b6]	18 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	10.5678552265829
Carbon footprint of the end-of-life phase [c1 to c4]	11 kg CO2 eq.
Pvc free	No
Silicone-free	No
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	49.5454159336485
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Pvc free	No
Silicone-free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
