Acti9 MSC Chassis 3PH 250A, Hybrid 18/27mm for MCB & RCBO 60 poles, Dual Feed

Home ProductsCircuit ProtectionActi9MSC Chassis 3PH

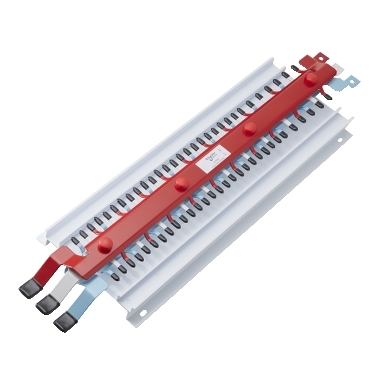

Acti9 MSC Chassis 3PH 250A, Hybrid 18/27mm for MCB & RCBO 60 poles, Dual Feed

Item Number: CH25603

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

chassis

Device application

distribution

Physical

Range compatibility

Acti 9 Acti9 Isobar B distribution board

[in] rated current

250 A

Number of poles

  • 12 x 27 mm
  • 48 x 18 mm

Length

596 mm

Width

215 mm

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Outside of Europe

Weee label

N/A

Weee applicability

Finished product

Average percentage of recycled plastic content

0 %

Package 1 bare product quantity

1

Legacy weee scope

Out

Device short name

MSC 18/27

Short-circuit withstand

25 kA 0.1 s

[icw] rated short-time withstand current

25 kA

Number of ways

  • 1 way (incomer) - 3P
  • 60 ways (outgoer)

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.7 cm

Package 1 width

88.5 cm

Package 1 length

24.2 cm

Package 1 weight

4.958 kg

Sustainable packaging

No

Pvc free

No

Halogen-free status

Halogen free product

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Halogen-free status

Halogen free product

Pvc free

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications
