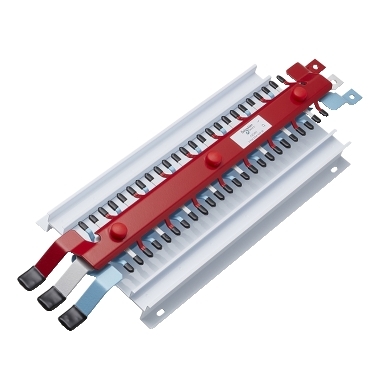

Acti9 MSC Chassis 3PH 250A, 18mm for iC60 MCB & RCBO, 48 poles, Dual Feed
Item Number: C325483
Datasheet
Close
Specifications
Design
| Range | Acti9 |
|---|---|
| Product or component type | chassis |
| Device application | distribution |
Physical
| Range compatibility | Acti9 Acti9 Isobar B distribution board |
|---|---|
| [in] rated current | 250 A |
| Rated voltage | 415 V AC 50 Hz |
| Number of poles | 48 x 18 mm |
| Length | 434 mm |
| Width | 215 mm |
| Net weight | 3.864 kg |
| Standards | AS/NZS 61439 |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2304022EN |
| Eu rohs directive | Compliant By Exemption |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
