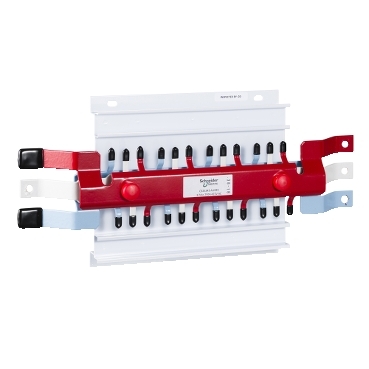

Acti9 DB MSC AUX9 Chassis 3P 3PH 250A 24P DF

Item Number: C325243AUX93

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606482231047	-

Specifications

Design

Range	Acti9
Product or component type	chassis
Device application	distribution

Physical

Range compatibility	Acti 9 Acti9 Isobar B distribution board
[in] rated current	250 A
Length	254 mm
Width	215 mm
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1809003EN
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Device short name	MSC AUX9
Short-circuit withstand	25 kA 0.1 s
[icw] rated short-time withstand current	25 kA
Number of ways	1 way (incomer) - 3P 24 ways (outgoer) - 3P with 9 mm
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 weight	1.000 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	26 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	4.82142051266984
Carbon footprint of the manufacturing phase [a1 to a3]	5 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.231508509066006
Carbon footprint of the distribution phase [a4]	0.2 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0389321632491111
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	18.493003159871
Carbon footprint of the use phase [b2, b3, b4, b6]	18 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	2.62685936529527
Carbon footprint of the end-of-life phase [c1 to c4]	3 kg CO2 eq.
Pvc free	No
Silicone-free	No
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	26.2117237101513
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Pvc free	No
Silicone-free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
