Acti9 Modular single phase power meter iEM2105, 230V, 63A with pulse
Item Number: A9MEM2105
Specifications
Design
| Range | Acti9 |
|---|---|
| Product or component type | energy meter |
| Market segment |
|
| Device application |
|
Physical
| [in] rated current | 63 A |
|---|---|
| Rated voltage | 230 V +/- 20 % |
| Communication port protocol | - |
| Local signalling |
|
| Mounting mode | clip-on |
| Mounting support | DIN rail |
| Connections - terminals | power circuit: tunnel type terminals (bottom) 1 16-16 mm² cable(s) |
| Standards |
|
| Product certifications | CE |
| Ip degree of protection |
|
| Ik degree of protection | IK05 |
| Ambient air temperature for operation | -25...55 °C |
| Ambient air temperature for storage | -25...70 °C |
| Relative humidity | 0...95 % at 55 °C |
| Width | 36 mm |
| Height | 81 mm |
| Depth | 65 mm |
| Net weight | 0.135 kg |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| China rohs regulation | X |
| Eu rohs directive | Compliant |
Documents & downloads
Filter items
-
All
-
Product Brochures
-

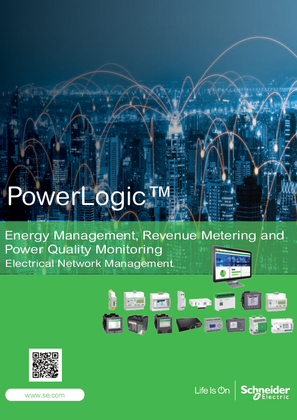

Technical Data Catalogues
-

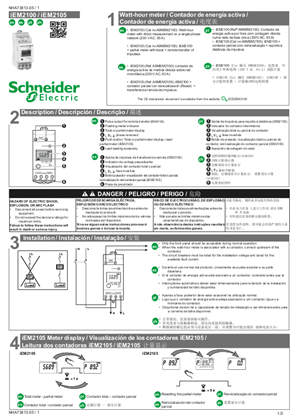

Installation Instruction
-

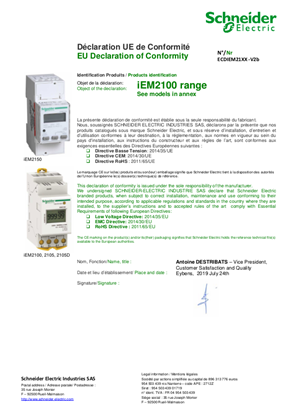

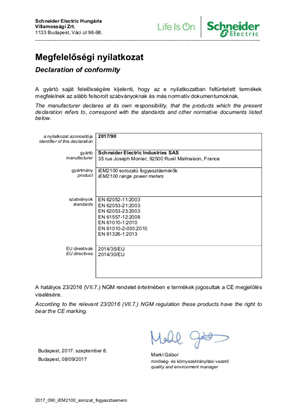

Declaration of Conformity
-
