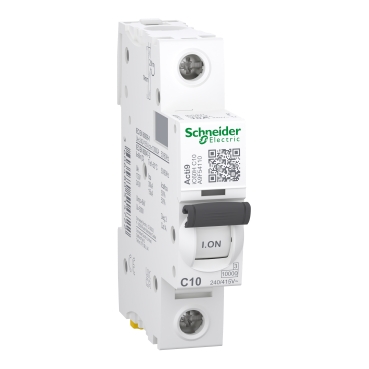

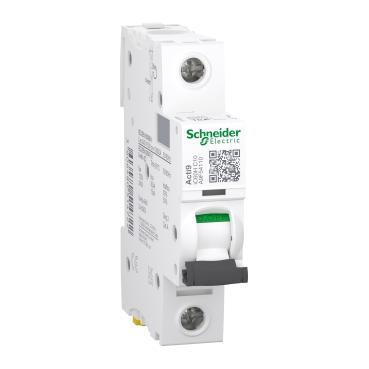

Acti9 Miniature circuit breaker (MCB) iC60H Disbo, 1P, 10A, C curve, 10000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)

Item Number: A9F54110

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width18 mm

Height85 mm

Depth78.5 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480514722	-
12	BB1	13606480514729	-

Specifications

Design

Range	Acti9
Range of product	Acti9
Product or component type	miniature circuit-breaker

Physical

[in] rated current	10 A
[ue] rated operational voltage	12...60 V AC 50/60 Hz 100...133 V AC 50/60 Hz 220...240 V AC 50/60 Hz 12...60 V DC 60...72 V DC
Control type	toggle
Local signalling	trip indicator
Mounting mode	clip-on
Mounting support	rail
Height	85 mm
Width	18 mm
Depth	78.5 mm
Net weight	0.125 kg
Mechanical durability	20000 cycles
Electrical durability	10000 cycles
Connections - terminals	single terminal (top or bottom) 1-25 mm² rigid single terminal (top or bottom) 1-16 mm² flexible
Wire stripping length	14 mm for top or bottom connection
Standards	EN/IEC 60947-2 EN/IEC 60898-1
Ip degree of protection	IP20 conforming to IEC 60529
Relative humidity	95 % at 55 °C
Ambient air temperature for operation	-35...70 °C
Ambient air temperature for storage	-40...85 °C
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1705002EN
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data	Yes
Package 1 bare product quantity	1
Legacy weee scope	In
	At least in Europe
Package 2 bare product quantity	12
Package 3 bare product quantity	132
Package 4 bare product quantity	1056
Average percentage of recycled plastic content	0 %
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	Disbo iC60
Device short name	iC60H
Poles description	1P
Number of protected poles	1
Network type	AC/DC
Trip unit technology	thermal-magnetic
Curve code	C
Breaking capacity code	H
Breaking capacity	42 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2 30 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2 15 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 20 kA Icu at 12...60 V DC conforming to EN/IEC 60947-2 15 kA Icu at 60...72 V DC conforming to EN/IEC 60947-2 10000 A Icn at 240 V AC 50/60 Hz conforming to EN/IEC 60898-1
Utilisation category	category A conforming to EN/IEC 60947-2
Network frequency	50/60 Hz
Magnetic tripping limit	8 x In +/- 20 %
[ics] rated service breaking capacity	21 kA 50 % conforming to EN/IEC 60947-2 - 10...60 V AC 50/60 Hz 15 kA 50 % conforming to EN/IEC 60947-2 - 100...133 V AC 50/60 Hz 7.5 kA 50 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz 20 kA 100 % conforming to EN/IEC 60947-2 - 12...60 V DC 15 kA 100 % conforming to EN/IEC 60947-2 - 60...72 V DC 10000 A 100 % conforming to EN/IEC 60898-1 - 240 V AC 50/60 Hz
Limitation class	3 conforming to EN/IEC 60898-1
[ui] rated insulation voltage	500 V AC 50/60 Hz conforming to EN/IEC 60947-2
[uimp] rated impulse withstand voltage	6 kV conforming to EN/IEC 60947-2
Contact position indicator	yes
Connection pitch	18 mm between devices
9 mm pitches	2
Total power losses	2.3 W
Power losses per pole	2.3 W
Provision for padlocking	padlockable
Tightening torque	2 N.m top or bottom
Earth-leakage protection	separate block
Compatibility code	iC60
Pollution degree	3 conforming to EN/IEC 60947-2
Overvoltage category	IV
Tropicalisation	2 conforming to IEC 60068-1
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.000 cm
Package 1 width	1.500 cm
Package 1 length	9.000 cm
Package 1 weight	110.000 g
Unit type of package 2	BB1
Number of units in package 2	12
Package 2 height	7.900 cm
Package 2 width	9.700 cm
Package 2 length	22.500 cm
Package 2 weight	1.358 kg
Unit type of package 3	S03
Number of units in package 3	132
Package 3 height	30.000 cm
Package 3 width	30.000 cm
Package 3 length	40.000 cm
Package 3 weight	15.425 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	14 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.7729038912690194
Carbon footprint of the manufacturing phase [a1 to a3]	0.8 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.015500405152968402
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.010278433621575146
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	12.387416666666669
Carbon footprint of the use phase [b2, b3, b4, b6]	12 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.3249535064933043
Carbon footprint of the end-of-life phase [c1 to c4]	0.3 kg CO2 eq.
Pvc free	Yes
Silicone-free	No
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	13.511052903203536
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	26ff71d1-98cf-4280-8725-455b9a6b2fb9
Tsca declaration url	https://download.schneider-electric.com/files?p_Doc_Ref=A9F54110_TSCA_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Tsca regulation	Does not contain Section 6H Chemical
Pvc free	Yes
Silicone-free	No
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
