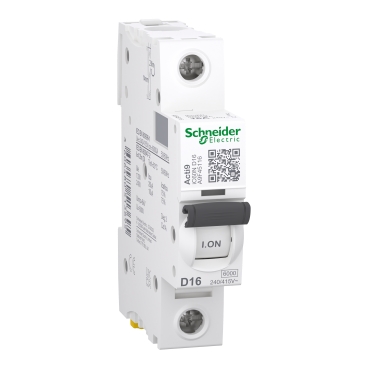

Acti9 iC60N DISBO Miniature circuit breaker (MCB) 1P, 16A, D curve, 6000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)

Item Number: A9F45116

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width18 mm

Height85 mm

Depth78.5 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480513695	-

Specifications

Design

Range	Acti9
Range of product	Acti9
Product or component type	miniature circuit-breaker

Physical

[in] rated current	16 A
[ue] rated operational voltage	12...60 V AC 50/60 Hz 100...133 V AC 50/60 Hz 220...240 V AC 50/60 Hz 12...60 V DC 60...72 V DC
Control type	toggle
Local signalling	trip indicator
Mounting mode	clip-on
Mounting support	rail
Height	85 mm
Width	18 mm
Depth	78.5 mm
Net weight	0.125 kg
Mechanical durability	20000 cycles
Electrical durability	10000 cycles
Connections - terminals	single terminal (top or bottom) 1-25 mm² rigid single terminal (top or bottom) 1-16 mm² flexible
Wire stripping length	14 mm for top or bottom connection
Standards	EN/IEC 60898-1 EN/IEC 60947-2
Ip degree of protection	IP20 conforming to IEC 60529
Relative humidity	95 % at 55 °C
Ambient air temperature for operation	-35...70 °C
Ambient air temperature for storage	-40...85 °C
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1705002EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Others

Life cycle assessment data	Yes
Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	Disbo iC60
Device short name	IC60N
Poles description	1P
Number of protected poles	1
Network type	AC/DC
Trip unit technology	thermal-magnetic
Curve code	D
Breaking capacity code	N
Breaking capacity	36 kA Icu at 10...60 V AC 50/60 Hz conforming to EN/IEC 60947-2 20 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2 10 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 15 kA Icu at 12...60 V DC conforming to EN/IEC 60947-2 10 kA Icu at 60...72 V DC conforming to EN/IEC 60947-2 6000 A Icn at 240 V AC 50/60 Hz conforming to EN/IEC 60898-1
Utilisation category	category A conforming to EN/IEC 60947-2
Network frequency	50/60 Hz
Magnetic tripping limit	12 x In +/- 20 %
[ics] rated service breaking capacity	27 kA 75 % conforming to EN/IEC 60947-2 - 12...60 V AC 50/60 Hz 15 kA 75 % conforming to EN/IEC 60947-2 - 100...133 V AC 50/60 Hz 7.5 kA 75 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz 15 kA 100 % conforming to EN/IEC 60947-2 - 12...60 V DC 10 kA 100 % conforming to EN/IEC 60947-2 - 60...72 V DC
Limitation class	3 conforming to EN/IEC 60898-1
[ui] rated insulation voltage	500 V AC 50/60 Hz conforming to EN/IEC 60947-2
[uimp] rated impulse withstand voltage	6 kV conforming to EN/IEC 60947-2
Contact position indicator	yes
Connection pitch	18 mm between devices
9 mm pitches	2
Total power losses	2.4 W
Power losses per pole	2.4 W
Provision for padlocking	padlockable
Tightening torque	2 N.m top or bottom
Earth-leakage protection	separate block
Compatibility code	iC60
Pollution degree	3 conforming to EN/IEC 60947-2
Overvoltage category	IV
Tropicalisation	2 conforming to IEC 60068-1
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	1.8 cm
Package 1 width	7.5 cm
Package 1 length	9 cm
Package 1 weight	108 g
Unit type of package 2	BB1
Number of units in package 2	12
Package 2 height	8.5 cm
Package 2 width	9.8 cm
Package 2 length	22 cm
Package 2 weight	1.369 kg
Unit type of package 3	S03
Number of units in package 3	132
Package 3 height	30 cm
Package 3 width	30 cm
Package 3 length	40 cm
Package 3 weight	14.878 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	14 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.7608086343387463
Carbon footprint of the manufacturing phase [a1 to a3]	0.8 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.015294193722512173
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.010141693292594229
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	12.926
Carbon footprint of the use phase [b2, b3, b4, b6]	13 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.3206304499832027
Carbon footprint of the end-of-life phase [c1 to c4]	0.3 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Halogen free plastic parts product
Silicone-free	No
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	14.032874971337055
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	26ff71d1-98cf-4280-8725-455b9a6b2fb9
China rohs label	1
Halogen-free status	Halogen free plastic parts product
Pvc free	Yes
Silicone-free	No
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
