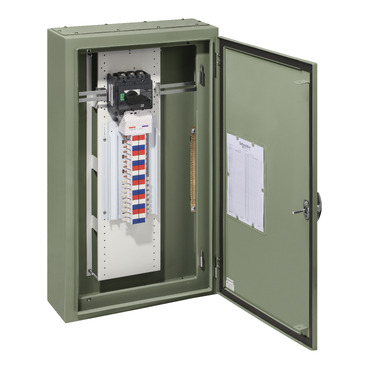

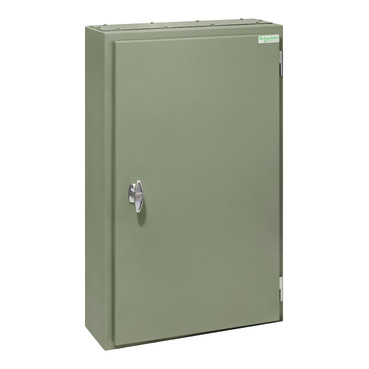

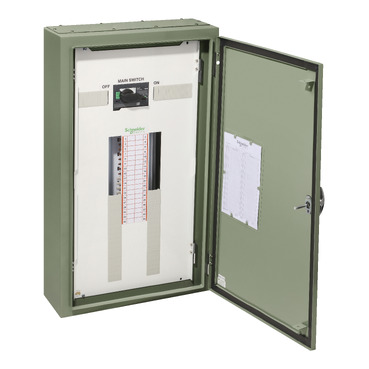

Acti9 MD Encapsulated distribution board 36 poles, 160A main switch, 18mm, IP56, grey

Item Number: MD236D31

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width580 mm

Height1000 mm

Depth225 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9318795508375	-

Specifications

Design

Range	Acti9
Product or component type	distribution board
Device application	distribution

Physical

Provided equipment	earth/neutral terminal block 165 A pole filler circuit schedule card removable gland plates - top and bottom 2 keys enclosure door SAU chassis main switch DIN rail
[ue] rated operational voltage	415 V
[ie] rated operational current	160 A
Number of poles	36 x 18 mm
Height	1000 mm
Width	580 mm
Depth	225 mm
Ip degree of protection	IP56
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1809003EN
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Product name	Acti9 encapsulated DB
Device short name	MD
Enclosure type	weatherproof enclosure
Door type	external plain
Network frequency	50 Hz
Breaking capacity	25 kA
[ui] rated insulation voltage	500 V
[uimp] rated impulse withstand voltage	6 kV
Enclosure mounting	surface
Poles description	3P + N
Enclosure material	steel
Enclosure material	steel
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	25 cm
Package 1 width	60 cm
Package 1 length	103 cm
Package 1 weight	41 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	213 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	203.1350694444
Carbon footprint of the manufacturing phase [a1 to a3]	203 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	5.2898541667
Carbon footprint of the distribution phase [a4]	5 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.1339561111
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.1476005444
Carbon footprint of the use phase [b2, b3, b4, b6]	0.1 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	3.936
Carbon footprint of the end-of-life phase [c1 to c4]	4 kg CO2 eq.
Pvc free	No
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	212.6424802667
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
