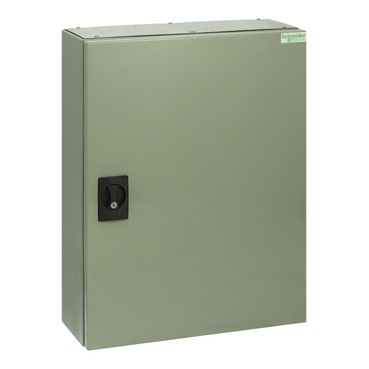

Acti9 MB Encapsulated distribution board 24 poles, 160A main switch, 18mm, IP42, grey

Item Number: MB224C31

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width580 mm

Height750 mm

Depth235 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9318795507972	-

Specifications

Design

Range	Acti9
Product or component type	distribution board
Device application	distribution

Physical

Provided equipment	pole filler circuit schedule card enclosure door removable gland plates keys SAU chassis 2 earth/neutral terminal block - top and bottom 165 A DIN rail main switch
[ue] rated operational voltage	415 V
[ie] rated operational current	160 A
Number of poles	24 x 18 mm
Height	750 mm
Width	580 mm
Depth	235 mm
Ip degree of protection	IP44
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2312049EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Warranty duration(in months) bmecat	18
Product name	Acti9 encapsulated DB
Device short name	MB
Enclosure type	standard
Door type	external plain
Network frequency	50 Hz
Breaking capacity	25 kA
[ui] rated insulation voltage	500 V
[uimp] rated impulse withstand voltage	6 kV
Enclosure mounting	surface
Poles description	3P + N
Enclosure material	steel
Enclosure material	steel
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	25 cm
Package 1 width	60 cm
Package 1 length	76.5 cm
Package 1 weight	31 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	242 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	149.46403589276437
Carbon footprint of the manufacturing phase [a1 to a3]	149 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	7.176763781046198
Carbon footprint of the distribution phase [a4]	7 kg CO2 eq.
Carbon footprint of the installation phase [a5]	1.2068970607224465
Carbon footprint of the installation phase [a5]	1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	18.493003159871
Carbon footprint of the use phase [b2, b3, b4, b6]	18 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	81.4326403241536
Carbon footprint of the end-of-life phase [c1 to c4]	81 kg CO2 eq.
Pvc free	No
Halogen-free status	Halogen free product
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	241.88616932212327
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	1
Halogen-free status	Halogen free product
Pvc free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Other technical guide
Environmental Disclosure
Specification Guide
Certificates (MSDS)
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

PZC-1216 MB-MD SAU250 - Design Verification Guidelines_E

VERSION

1.0

DATE

15 Oct 2024

REVISION

1.0

DOWNLOAD (ZIP) 196 KB

ZIP

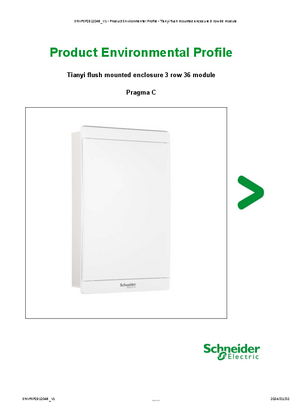

Tianyi flush mounted enclosure
