Acti9 Linear switch 1 C/O, 20A, 250 V AC, 2 positions

Item Number: A9E18070

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width18 mm

Height82 mm

Depth75 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480088476	-
12	BB1	13606480088473	-

Specifications

Design

Range of product	Acti9
Range	Acti9
Product or component type	changeover switch
Device application	electrical circuit control
Market segment	small commercial residential

Physical

[ue] rated operational voltage	250 V AC 50/60 Hz
Standards	IEC 60669-1 IEC 60947-5-1
[ie] rated operational current	20 A
Control type	toggle 2 positions
Marking	0 - 1
Mounting mode	clip-on
Mounting support	DIN rail
Height	82 mm
Width	18 mm
Depth	75 mm
Electrical durability	AC-22: 30000 cycles cos Phi = 0.8
Connections - terminals	staggered tunnel terminal (downside) 2 cable(s) 0.5-2.5 mm² flexible staggered tunnel terminal (downside) 2 cable(s) 0.5-2.5 mm² rigid without cable end
Wire stripping length	9 mm
Ip degree of protection	IP20 conforming to IEC 60529
Relative humidity	95 % at 55 °C
Ambient air temperature for operation	-20...50 °C
Ambient air temperature for storage	-40...70 °C
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2603033EN
Eu rohs directive	Compliant

Others

Life cycle assessment data	Yes
Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	12
Package 3 bare product quantity	108
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	At least in Europe
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	Acti9 iSSW
Device short name	iSSW
Poles description	1P
Contacts type and composition	1 C/O
9 mm pitches	2
Tightening torque	1 N.m
Compatibility code	iSSW
Tropicalisation	2
Pollution degree	3
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.500 cm
Package 1 width	1.900 cm
Package 1 length	9.000 cm
Package 1 weight	44.000 g
Unit type of package 2	BB1
Number of units in package 2	12
Package 2 height	8.000 cm
Package 2 width	10.000 cm
Package 2 length	23.000 cm
Package 2 weight	588.000 g
Unit type of package 3	S03
Number of units in package 3	108
Package 3 height	30.000 cm
Package 3 width	30.000 cm
Package 3 length	40.000 cm
Package 3 weight	5.700 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.5 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.3093665968175741
Carbon footprint of the manufacturing phase [a1 to a3]	0.3 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.007550826126385086
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.011376564144492552
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.1646609628183838
Carbon footprint of the use phase [b2, b3, b4, b6]	0.2 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.04109413649492442
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.53404908640176
Bvb	Accepted
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	Yes
Scip number	e5f22bd9-8e0c-4771-b932-618a392a4c8b
Tsca declaration url	https://download.schneider-electric.com/files?p_Doc_Ref=A9E18070_TSCA_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Oecd pfas declaration url	https://download.schneider-electric.com/files?p_Doc_Ref=A9E18070_OECD_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Pop declaration url	https://download.schneider-electric.com/files?p_Doc_Ref=A9E18070_POP_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Tsca regulation	Does not contain Section 6H Chemical
Oecd pfas regulation	Item contains PFAS Chemicals
Pop directive	No POPs
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Environmental Disclosure
Declaration of Conformity
Certificates (MSDS)
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

Linear switch 20A 250 V AC - 3D CAD

VERSION

1.0

DATE

23 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 932.6 KB

ZIP

Acti9 - Changeover switch - iSSW - 1 C/O - 20A - 250 V AC - 3 positions - Product Environmental Profile

VERSION

1.0

DATE

09 Apr 2026

REVISION

1.0

DOWNLOAD (ZIP) 478.7 KB

ZIP

UK Declaration of Conformity

VERSION

1.0

DATE

24 Feb 2026

REVISION

1.0

DOWNLOAD (ZIP) 218.4 KB

ZIP

DOC_UE_FD16041505B_iSSW Switch Selector

VERSION

2.0

DATE

17 July 2023

REVISION

2.0

DOWNLOAD (ZIP) 459.4 KB

ZIP

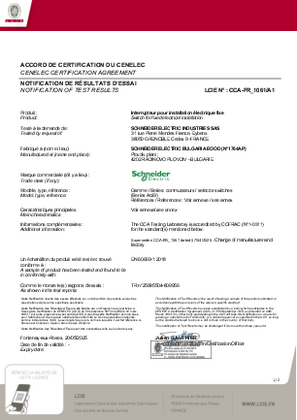

CCA Certificate

VERSION

1.0

DATE

14 July 2025

REVISION

1.0

DOWNLOAD (ZIP) 488.1 KB

ZIP

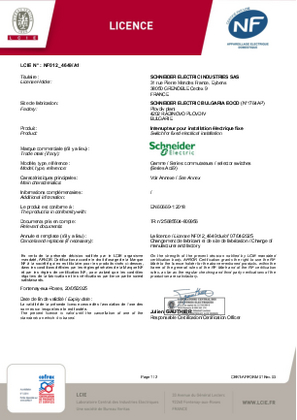

NF Certificate

VERSION

1.0

DATE

03 July 2025

REVISION

1.0

DOWNLOAD (ZIP) 466.1 KB

ZIP

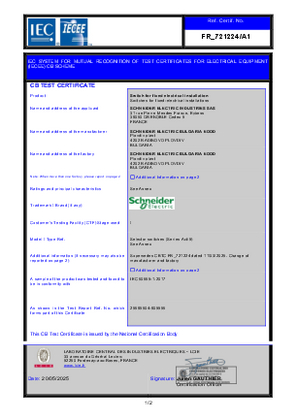

CB Test Certificate
