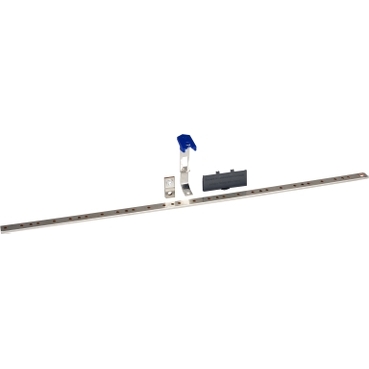

Acti9 DB Isobar B neutral bar 1N, for distribution board, 16 ways

Item Number: SEA9NB16

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	5018934963389	-

Specifications

Design

Range of product	Acti9
Product or component type	neutral bar
Product destination	distribution board
Surface treatment	epoxy
Surface finish	powder paint

Physical

[ie] rated operational current	250 A at 400/415 V AC
Provided equipment	neutral bar busbar link 4 cover
Ip degree of protection	IP2X internal conforming to BS EN 60529 IP3x external conforming to BS EN 60529
Ik degree of protection	IK05 conforming to BS EN 60529
Height	808 mm
Depth	139 mm
Ambient air temperature for operation	-35...70 °C
Ambient air temperature for storage	-40...80 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1809003EN
Eu rohs directive	Compliant By Exemption

Others

Life cycle assessment data	Yes
Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Legacy weee scope	Out
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Enclosure type	standard
Door type	overall
Breaking capacity	25 kA
Poles description	3P + N
Protection device name	iC60H
Number of ways	16 ways outgoer
Enclosure material	steel
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	8.0 cm
Package 1 width	8.0 cm
Package 1 length	71.0 cm
Package 1 weight	522.0 g
Unit type of package 2	PAM
Number of units in package 2	200
Package 2 height	112.0 cm
Package 2 width	100.0 cm
Package 2 length	120.0 cm
Package 2 weight	119.4 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	23 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	2.5167815076136604
Carbon footprint of the manufacturing phase [a1 to a3]	3 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.12084744173245546
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.020322589216036035
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	18.49300315987108
Carbon footprint of the use phase [b2, b3, b4, b6]	18 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	1.3712205886841353
Carbon footprint of the end-of-life phase [c1 to c4]	1 kg CO2 eq.
Pvc free	No
Silicone-free	No
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	22.522175287117367
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Pvc free	No
Silicone-free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
