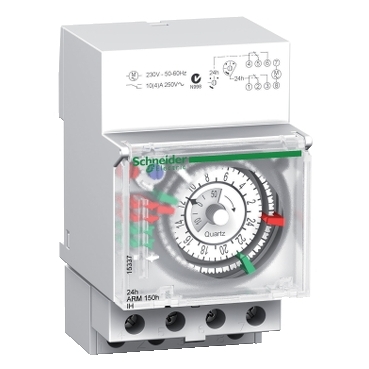

Acti9 IH mechanical time switch 24 h, 150 h memory

Item Number: 15337

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width54 mm

Height82 mm

Depth66 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3303430153375	-

Specifications

Design

Range of product	Acti9
Range	Acti9
Product or component type	mechanical time switch
Device application	building
Colour tint	white (RAL 9003)
Market segment	small commercial residential
Warranty	18 months

Physical

Number of channels	2
Function available	manual time changeover
Load type	parallel-corrected fluorescent tube 1 x conventional ballast 58 W non-corrected fluorescent tube 10 x conventional ballast 58 W serial-corrected fluorescent tube 10 x conventional ballast 58 W non-corrected fluorescent tube 15 x conventional ballast 40 W serial-corrected fluorescent tube 15 x conventional ballast 40 W parallel-corrected fluorescent tube 2 x conventional ballast 40 W 230 V AC halogen lamp 1100 W 230 V AC incandescent lamp 1100 W dual mounted fluorescent tube 3 x conventional ballast 2 x 100 W dual mounted fluorescent tube 5 x conventional ballast 2 x 58 W non-corrected fluorescent tube 6 x conventional ballast 100 W serial-corrected fluorescent tube 6 x conventional ballast 100 W
Minimum interval duration	30 min
Type of setting	manual time changeover
[ue] rated operational voltage	230 V AC - 15...10 % at 50/60 Hz
Backup time	150 h time and program saving
Mounting support	DIN rail
Connections - terminals	screw terminals
Width	54 mm
Height	82 mm
Depth	66 mm
Net weight	0.216 kg
Ambient air temperature for operation	-20...55 °C
Ip degree of protection	terminals: IP20 B
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1307077EN
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Others

Certification number	NCC T04421 - NET CONNECTION
Legacy weee scope	In
Package 1 bare product quantity	1
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	Acti9 IH
Device short name	IH
Cycle duration	24 h
Maximum number of switchings	24 on - 24 off
Measurement accuracy	+/- 1 s/day 20-20 °C
Power consumption in va	2.5 VA
Maximum switching current	16 A - 250 V AC pf = 1 4 A - 250 V AC pf = 0.6
Battery life	6 year(s)
9 mm pitches	6
Function	none
Absence for holidays	no
Time changeover	manual
Updated by	none
Compatibility code	IH
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	6.8 cm
Package 1 width	7.8 cm
Package 1 length	10.8 cm
Package 1 weight	230 g
Sustainable packaging	No
Take-back	No
Average percentage of recycled metal content	0 %
Scip number	31a6ec4e-38c2-499e-bfc3-0af92416b19f
China rohs label	2
End of life manual availability	ENVEOLI1307077EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Product Brochures
End of Life Manual
Environmental Disclosure
Operating Manuals
Declaration of Conformity
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

IH 24H MEM 2C 10A - 3D CAD

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 1.1 MB

ZIP

Time switches - Efficiency at your fingertips

VERSION

5.1

DATE

29 Jun 2022

REVISION

5.1

DOWNLOAD (ZIP) 1.2 MB

ZIP

Programmable year time switch - CCT15940 - End of life manual

VERSION

1.0

DATE

31 Jul 2025

REVISION

1.0

DOWNLOAD (ZIP) 771.3 KB

ZIP

Programmable year time switch - CCT15940 - Product Environmental Profile

VERSION

1.0

DATE

31 Jul 2025

REVISION

1.0

DOWNLOAD (ZIP) 179.3 KB

ZIP

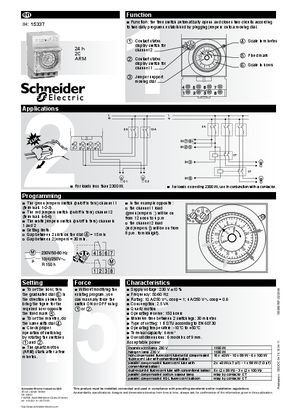

Acti 9- IH Mechanical Time Switch 24H-2C ARM-User Guide (EN)

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 218.8 KB

ZIP

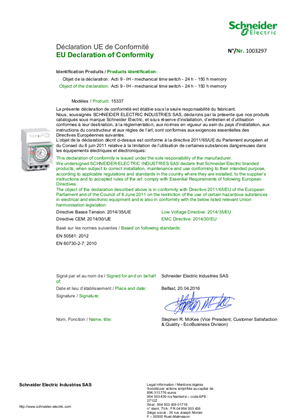

EU declaration of conformity
