Acti9 IH mechanical time switch 24 h, 150 h memory

Home ProductsCircuit ProtectionActi9IH mechanical time switch

Acti9 IH mechanical time switch 24 h, 150 h memory

Item Number: 15336

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width18 mm

Height icon

Height90 mm

Depth icon

Depth66 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Acti9

Range

Acti9

Product or component type

mechanical time switch

Device application

building

Colour tint

white (RAL 9003)

Market segment

  • small commercial
  • residential

Warranty

18 months

Physical

Number of channels

1

Function available

manual time changeover

Load type

  • parallel-corrected fluorescent tube 5 x 58 W 4.7 µF
  • parallel-corrected fluorescent tube 7 x 40 W 7 µF
  • parallel-corrected fluorescent tube 2 x 100 W 18 µF
  • 230 V AC halogen lamp 1000 W
  • 230 V AC incandescent lamp 1000 W
  • fluocompact lamp 700 VA
  • compact fluorescent lamp 150 W
  • LED lamp < 2 W 30 W
  • LED lamp > 2 W 300 W

Minimum interval duration

15 min

Type of setting

manual time changeover

Power consumption in w

0.5 W

[ue] rated operational voltage

230...240 V AC at 50...60 Hz

Backup time

150 h time and program saving

Mounting support

DIN rail

Connections - terminals

screw terminals

Width

18 mm

Height

90 mm

Depth

66 mm

Net weight

0.101 kg

Ambient air temperature for operation

-10...50 °C

Ip degree of protection

terminals: IP20 B

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1307077EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Certification number

NCC T04421 - NET CONNECTION

Package 1 bare product quantity

1

Package 2 bare product quantity

100

Legacy weee scope

In

Substance regulation data deliverable

Yes

If one of the deliverables is not relevant please give the reason

Brand labelled

Life cycle assessment data

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Package 3 bare product quantity

1600

Average percentage of recycled plastic content

0 %

At least in Europe

Product name

Acti9 IH

Device short name

IH

Cycle duration

24 h

Maximum number of switchings

48 on - 48 off

Measurement accuracy

+/- 1 s/day 20-20 °C

Maximum switching current

  • 16 A - 250 V AC pf = 1
  • 4 A - 250 V AC pf = 0.6

Battery life

10 year(s)

9 mm pitches

2

Function

none

Absence for holidays

no

Time changeover

manual

Updated by

none

Compatibility code

IH

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.4 cm

Package 1 width

6.8 cm

Package 1 length

10 cm

Package 1 weight

87 g

Unit type of package 2

S03

Number of units in package 2

100

Package 2 height

30 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

9.35 kg

Unit type of package 3

P12

Number of units in package 3

1600

Package 3 height

75 cm

Package 3 width

80 cm

Package 3 length

120 cm

Package 3 weight

146.192 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

No

Energy efficiency optimized

False

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Scip number

51645430-ab03-4d5b-9ca4-cf8bc05b4a81

End of life manual availability

ENVEOLI1307077EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Product Brochures

  • End of Life Manual

  • Environmental Disclosure

  • Operating Manuals

  • Application Notes

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
IH 18MM 24H - 3D-CAD
ZIP

IH 18MM 24H - 3D-CAD

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 731.1 KB
Time switches - Efficiency at your fingertips
ZIP

Time switches - Efficiency at your fingertips

VERSION

5.1

DATE

29 Jun 2022

REVISION

5.1

DOWNLOAD (ZIP) 1.2 MB
Programmable year time switch - CCT15940 - End of life manual
ZIP

Programmable year time switch - CCT15940 - End of life manual

VERSION

1.0

DATE

31 Jul 2025

REVISION

1.0

DOWNLOAD (ZIP) 771.3 KB
Programmable year time switch - CCT15940 - Product Environmental Profile
ZIP

Programmable year time switch - CCT15940 - Product Environmental Profile

VERSION

1.0

DATE

31 Jul 2025

REVISION

1.0

DOWNLOAD (ZIP) 179.3 KB
Acti 9- IHH-IH Mechanical Time Switch-User Guide (EN)
ZIP

Acti 9- IHH-IH Mechanical Time Switch-User Guide (EN)

VERSION

1.0

DATE

18 Jun 2024

REVISION

1.0

DOWNLOAD (ZIP) 512.4 KB

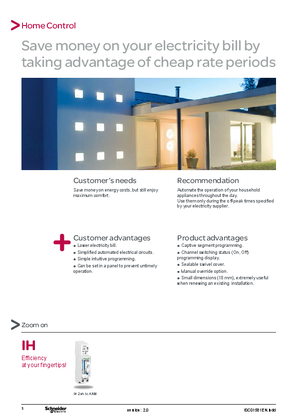

Save money on your electricity bill by taking advantage of low rate periods
