Acti9 IEM3350 energy meter 125 A - Modbus - NMI

Item Number: A9MEM3350-NMI

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width126 mm

Height103.2 mm

Depth69.3 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554784225	-

Specifications

Design

Range	Acti9
Product or component type	energy meter
Market segment	buildings small building cost management: billing: main incomer buildings small building cost management: billing: sub feeder buildings small building cost management: billing: panelboard buildings medium building cost management: billing: main incomer buildings medium building cost management: billing: sub feeder buildings medium building cost management: billing: panelboard buildings large building cost management: billing: main incomer buildings large building cost management: billing: sub feeder buildings large building cost management: billing: panelboard buildings multi-site cost management: billing: main incomer buildings multi-site cost management: billing: sub feeder buildings multi-site cost management: billing: panelboard data center cost management: billing healthcare cost management: billing industry cost management: billing buildings small building cost management: cost allocation: main incomer buildings small building cost management: cost allocation: sub feeder buildings small building cost management: cost allocation: panelboard buildings medium building cost management: cost allocation: main incomer buildings medium building cost management: cost allocation: sub feeder buildings medium building cost management: cost allocation: panelboard buildings large building cost management: cost allocation: main incomer buildings large building cost management: cost allocation: sub feeder buildings large building cost management: cost allocation: panelboard buildings multi-site cost management: cost allocation: main incomer buildings multi-site cost management: cost allocation: sub feeder buildings multi-site cost management: cost allocation: panelboard data center cost management: cost allocation healthcare cost management: cost allocation industry cost management: cost allocation
Device application	partial meter sub billing

Physical

[in] rated current	125 A
Rated voltage	100...277 V 173...480 V
Communication port protocol	Modbus RTU at 9.6, 19.2 and 38.4 kbauds even/odd or none, insulation 4000 V
Local signalling	green indicator light: power ON yellow flashing LED: accuracy checking yellow indicator light: communications are active on the Modbus port (Modbus)
Mounting mode	clip-on
Mounting support	DIN rail
Connections - terminals	screw terminals 50-50 mm² cable(s)
Standards	IEC 61010 IEC 61036 IEC 62053-21 IEC 62053-23:2020 IEC 61557-12:2021
Product certifications	CE conforming to IEC 61010 (safety) CE conforming to EN 61557-12 (power monitor) CE conforming to IEC 61326-1 (EMC) cULus conforming to UL 61010 (safety) cULus conforming to ANSI C12.20 (sub-meter) EAC (sub-meter) RCM ACMA NMI conforming to NMI M 6-1 (sub-meter)
Ip degree of protection	IP40 front panel: conforming to IEC 60529 IP20 body: conforming to IEC 60529
Relative humidity	5...95 % at 50 °C
Ambient air temperature for operation	-25...70 °C - IEC
Ambient air temperature for storage	-40...85 °C
Width	126 mm
Height	103.2 mm
Depth	69.3 mm
Environmental disclosure	ENVPEP1404007EN

Others

Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Product name	Acti9 iEM3000
Device short name	iEM3350
Poles description	3P + N 3P 1P + N
Type of measurement	active energy current voltage active power
Accuracy class	class 1 active energy conforming to IEC 62053-21 class 1 active energy conforming to IEC 61557-12
Analogue input type	direct connection
Network frequency	50 Hz 60 Hz
Technology type	electronic
Display type	LCD display
Sampling rate	32 samples/cycle
Measurement current	0...125 A
Maximum value measured	99999999.9 kWh
Communication port support	screw terminal block: RS485
Number of inputs	0
Number of outputs	0
Overvoltage category	III
Pollution degree	2
Operating altitude	< 3000 m
9 mm pitches	14
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	8.6 cm
Package 1 width	12.0 cm
Package 1 length	13.0 cm
Package 1 weight	704.0 g
Total lifecycle carbon footprint	66 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	12.989761620038793
Carbon footprint of the manufacturing phase [a1 to a3]	13 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.13901653319308988
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.13917303634513853
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	52.29087719298245
Carbon footprint of the use phase [b2, b3, b4, b6]	52 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.8697819178256337
Carbon footprint of the end-of-life phase [c1 to c4]	0.9 kg CO2 eq.
Energy efficiency optimized	False
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	66.4286103003851
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

Important: Some software files may need a mySchneider or Club login to download.

PDF

Smart Panels: Embrace the future of power distribution (eBrochure)

VERSION

1.0

DATE

17 Apr 2019

REVISION

1.0

DOWNLOAD (PDF) 12.5 MB

ZIP

Acti 9 iEM3355 energy meter, Environmental Disclosure, Product Environmental Profile

VERSION

1.0

DATE

02 Dec 2025

REVISION

1.0

DOWNLOAD (ZIP) 371.3 KB

ZIP

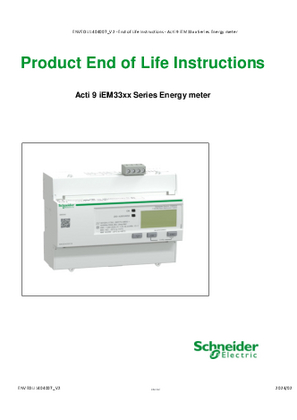

Acti 9 iEM3300 Energy Meter, Circularity Profile, End of Life Instructions

VERSION

1.0

DATE

02 Nov 2024

REVISION

1.0

DOWNLOAD (ZIP) 363.3 KB

ZIP

iEM3000 Technical Data Sheet

VERSION

1.0

DATE

23 Aug 2025

REVISION

1.0

DOWNLOAD (ZIP) 467.1 KB

ZIP

Security Expert REACH Declaration of Conformity 2018

VERSION

1.0

DATE

23 Feb 2026

REVISION

1.0

DOWNLOAD (ZIP) 56.6 KB

ZIP

Certificate of Origin- iEM3000

VERSION

1.0

DATE

23 Feb 2026

REVISION

1.0

DOWNLOAD (ZIP) 30.7 KB

ZIP

EULA Security Expert - END-USER LICENSE AGREEMENT (“EULA”)

VERSION

1.0

DATE

21 Feb 2026

REVISION

1.0

DOWNLOAD (ZIP) 402.5 KB

Frequently Asked Questions

Which are the NMI approved meters?

Hide Show

Following are the NMI approved metres:

iem3255,....part number A9MEM3255-NMI.........https://eshop.schneider-electric.com/product.aspx?org=21&lang=1&dist=276&prod_id=A9MEM3255
iem3350.....part number A9MEM3350-NMI
em1350......part number METSEEPM3150
