Acti9 IC2000 outdoor twilight switch 2 - 2000 lux

Item Number: CCT15369

1 PCE 0

IC2000 analogue twilight switch Width of 18mm (2 modules of 9mm) Closing and opening of a contact when brightness decreases, or rises above the selected threshold. Adjustable brightness threshold: 2 to 2000 lux Delivered with outdoor wall-mounted sensor 1 channel output

Where To Buy

Datasheet

Download

Product Dimensions

Width18 mm

Height85.5 mm

Depth67 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606489524616	-

Specifications

Design

Range	Acti9
Product or component type	twilight switch
Device application	building

Physical

Provided equipment	twilight sensor outdoor
Load type	incandescent lamp: 2600 W halogen lamp: 2600 W non-corrected fluorescent tube: 2300 VA serial-compensated fluorescent tube: 2300 VA parallel compensated fluorescent lamp: 730 VA (80 µF) compact fluorescent lamp: 170 W < 2 W LED lamp: 30 W > 2 W LED lamp: 200 W
Number of channels	1
[ue] rated operational voltage	230 V AC +10 % -15 % at 50/60 Hz
Electrical insulation class	class II
Light intensity adjustment	2...2000 lux
Connections - terminals	1 x 2.5-2.5 mm² screw terminals solid or flexible with sleeve 2 x 0.5-2.5 mm² screw terminals solid or flexible
Mounting support	TH35 DIN rail conforming to EN 60715
Height	85.5 mm
Width	18 mm
Depth	67 mm
Net weight	111 g
Marking	CE
Control type	by brightness detection
Ambient air temperature for operation	-30...55 °C
Ambient air temperature for storage	-30...70 °C
Relative humidity	90 %, non-condensing
Ip degree of protection	IP20 IP55 (sensor)
Standards	EN 60669-2-1
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1901001EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 1 bare product quantity	1
	At least in Europe
Average percentage of recycled plastic content	0 %
Package 3 bare product quantity	320
Package 2 bare product quantity	40
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	Acti9 IC
Device short name	IC2000
Maximum power consumption in w	0.5 W stand by
Maximum switching current	10 A - 250 V AC pf = 0.6 16 A - 250 V AC pf = 1
Minimum switching current	10 mA 230 V AC 100 mA 24 V AC/DC
Output type	dry contact
Accuracy	+/- 0.25 s/day 25 °C
Contacts type and composition	1 NO
Time delay	20 s on 80 s off
Total power losses	0.3 W
Overvoltage category	class 3
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	6.500 cm
Package 1 width	8.000 cm
Package 1 length	10.500 cm
Package 1 weight	162.000 g
Unit type of package 2	S03
Number of units in package 2	40
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	6.890 kg
Unit type of package 3	P12
Number of units in package 3	320
Package 3 height	45.000 cm
Package 3 width	80.000 cm
Package 3 length	120.000 cm
Package 3 weight	66.120 kg
Green premium status for reporting	Green Premium product
Sustainable packaging	No
Pvc free	Yes
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	5c23d91a-4c63-483e-b70a-45310671b035
China rohs label	2
Pvc free	Yes
End of life manual availability	ENVEOLI1901001EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Product Brochures
End of Life Manual
Environmental Disclosure
Operating Manuals
Application Notes
Declaration of Conformity
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

Acti9 IC2000 outdoor twilight switch 2 - 2000 lux

Item Number: CCT15369

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Documents & downloads

All

CAD Files and Packs

Product Brochures

End of Life Manual

Environmental Disclosure

Operating Manuals

Application Notes

Declaration of Conformity

Declaration of Conformity (Sustainability)

Acti 9 CCT15369 Dimension - 2D CAD Drawing

Global Time Brochure

IC Astro - Time switch 1C - SMART - Product End of Life Instructions

IC Astro - Time switch 1C - SMART - Product Environmental Profile

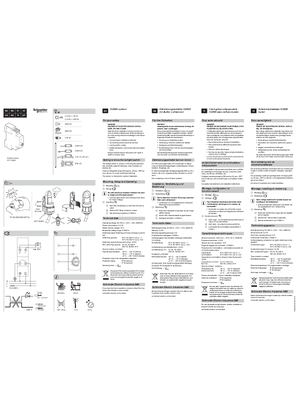

Acti 9- IC2000 Twilight Switch Outdoor-Operating instructions (EN)

Acti 9- Analogue Indoor Light Sensor Cell-Operating instructions (EN)

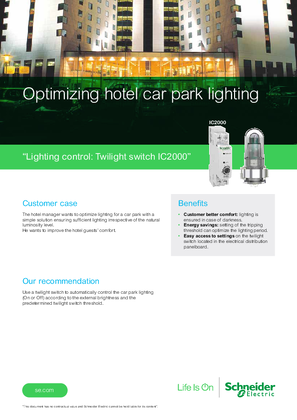

Optimizing hotel car park lighting
