Acti9 IC2000 indoor twilight switch 2 - 2000 lux
Item Number: CCT15285
IC2000 analogue twilight switch Width of 18mm (2 modules of 9mm) Closing and opening of a contact when brightness decreases, or rises above the selected threshold. Adjustable brightness threshold: 2 to 2000 lux Delivered with indoor switchboard sensor 1 channel output
Specifications
Design
Range
Product or component type
Device application
Physical
Provided equipment
Load type
- incandescent lamp: 2600 W
- halogen lamp: 2600 W
- non-corrected fluorescent tube: 2300 VA
- serial-compensated fluorescent tube: 2300 VA
- parallel compensated fluorescent lamp: 730 VA (80 µF)
- compact fluorescent lamp: 170 W
- < 2 W LED lamp: 30 W
- > 2 W LED lamp: 200 W
Number of channels
[ue] rated operational voltage
Electrical insulation class
Light intensity adjustment
Connections - terminals
- 2 x 0.5-2.5 mm² screw terminals solid or flexible
- 1 x 2.5-2.5 mm² screw terminals solid or flexible with sleeve
Mounting support
Height
Width
Depth
Net weight
Marking
Control type
Ambient air temperature for operation
Ambient air temperature for storage
Relative humidity
Ip degree of protection
- IP20
- IP66 (sensor)front
- IP40 (sensor)rear
Standards
Toxic heavy metal free
Mercury free
Rohs exemption information
Environmental disclosure
Eu rohs directive
Reach regulation
China rohs regulation
Others
Legacy weee scope
Package 1 bare product quantity
Package 2 bare product quantity
Average percentage of recycled plastic content
Weee label
Product name
Device short name
Maximum power consumption in w
Maximum switching current
- 10 A - 250 V AC pf = 0.6
- 16 A - 250 V AC pf = 1
Minimum switching current
- 10 mA 230 V AC
- 100 mA 24 V AC/DC
Output type
Accuracy
Contacts type and composition
Time delay
- 20 s on
- 80 s off
Overvoltage category
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Green premium status for reporting
Sustainable packaging
Energy efficiency optimized
Take-back
Product contributes to saved and avoided emissions
Removable battery
Average percentage of recycled metal content
Packaging made with recycled cardboard
Packaging without single use plastic
Scip number
End of life manual availability
Take-back
Weee label
Warranty (in months)
Documents & downloads
hide show-
All
-
CAD Files and Packs
-
Product Brochures
-
End of Life Manual
-
Environmental Disclosure
-
Operating Manuals
-
Declaration of Conformity
-
Declaration of Conformity (Sustainability)

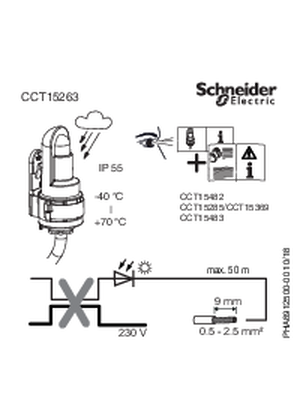

Acti 9- Analogue Outdoor Light Sensor Cell-Operating instructions (EN)
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0

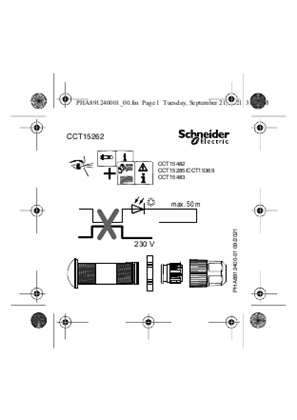

Acti 9- Analogue Indoor Light Sensor Cell-Operating instructions (EN)
VERSION
1.0
DATE
21 Sep 2021
REVISION
1.0

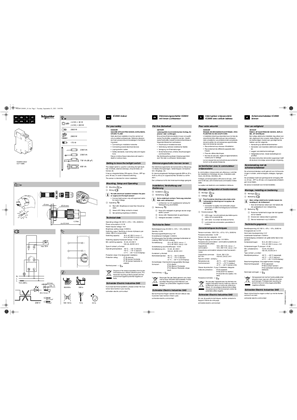

Acti 9- IC2000 Indoor Twilight Switch-Operating instructions (EN)
