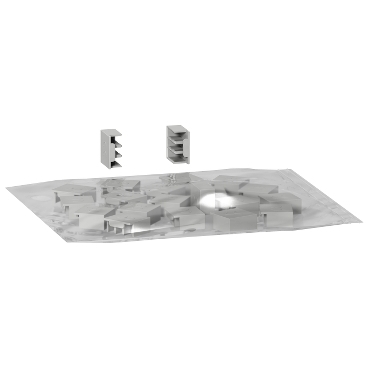

Acti9 End caps Set of 20 3P-N 63A

Home ProductsCircuit ProtectionActi9End caps

Acti9 End caps Set of 20 3P-N 63A

Item Number: A9N21040

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Acti9

Range

Acti9

Product or component type

comb busbar side cover

Product compatibility

  • iC60
  • iID
  • iID K
  • iK60
  • iSW switch disconnector
  • iSW-NA

Market segment

small commercial

Warranty

18 months

Physical

Quantity per set

set of 20

Range compatibility

  • Multi9 N40N comb busbar
  • Multi9 N40 Vigi comb busbar

Device presentation

cuttable

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

Package 2 bare product quantity

80

At least in Europe

Weee label

No

Product name

Linergy FH

Accessory / separate part category

insulation accessory

Poles description

3P + N

Distribution type

  • N + L + Vigi + auxiliary
  • N + L + auxiliary

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.000 cm

Package 1 width

7.000 cm

Package 1 length

10.000 cm

Package 1 weight

26.000 g

Unit type of package 2

S02

Number of units in package 2

80

Package 2 height

15 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

2.535 kg

Sustainable packaging

No

Take-back

No

Packaging made with recycled cardboard

Yes

Scip number

90215406-b6bf-44f8-b463-8540d32a6f6b

Take-back

No

Warranty (in months)

18
Show all specifications
