Acti9 C120 Earth leakage add-on block 2P, 30 mA, class A

Item Number: A9N18572

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width117 mm

Height95 mm

Depth73 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480376351	-

Specifications

Design

Range	Acti9
Product or component type	add-on residual current device
Product compatibility	single terminal
Market segment	small commercial residential
Warranty	18 months

Physical

[in] rated current	125 A

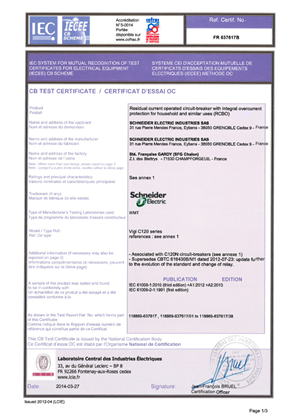

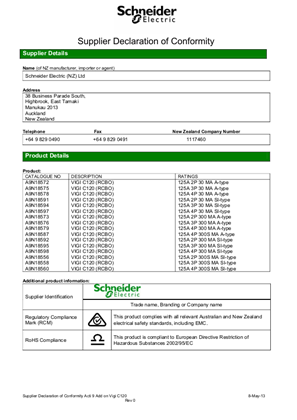

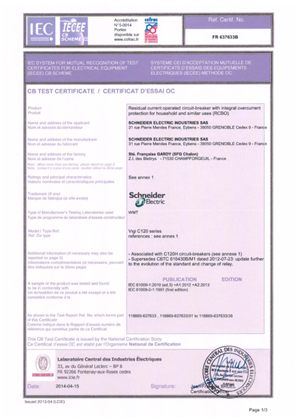

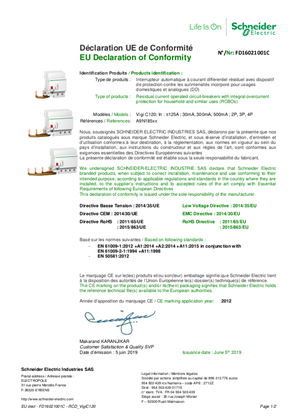

Standards	EN 61009 IEC/EN 61009-2-1
[ue] rated operational voltage	230...240 V AC 50/60 Hz

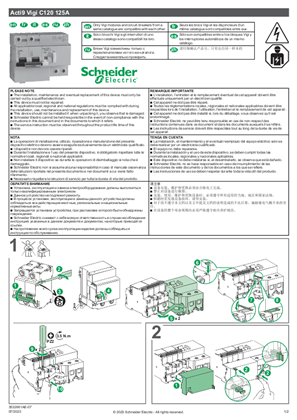

Mounting mode	clip-on
Mounting support	35 mm symmetrical DIN rail
Height	95 mm
Width	117 mm
Depth	73 mm
Net weight	0.325 kg
Mechanical durability	20000 cycles
Connections - terminals	tunnel type terminals 1-35 mm² flexible tunnel type terminals 1-50 mm² rigid
Wire stripping length	15 mm
Ip degree of protection	IP20
Ambient air temperature for operation	-25...60 °C
Ambient air temperature for storage	-40...60 °C
Mercury free	Yes
Rohs exemption information	Yes

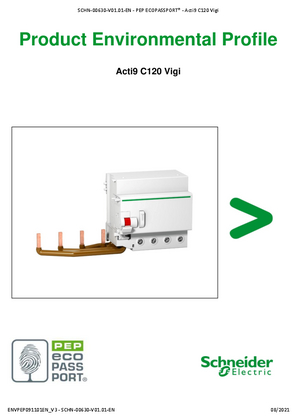

Environmental disclosure	ENVPEP0911001EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	8
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	Acti9 Vigi C120
Device short name	Vigi C120
Poles description	2P
Network type	AC
Earth-leakage sensitivity	30 mA
Earth-leakage protection time delay	instantaneous
Earth-leakage protection class	type A
Device location in system	outgoer group incomer
Network frequency	50/60 Hz
Residual current tripping technology	voltage independent
[ui] rated insulation voltage	500 V AC 50/60 Hz conforming to IEC 60947-1
[uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-2
Electrical connection to mcb	by screws
9 mm pitches	7
Total power losses	7.2 W
Power losses per pole	3.6 W
Tightening torque	3.5...3.5 N.m
Compatibility code	Vigi C120
Pollution degree	3 conforming to IEC 60947-2
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	9.500 cm
Package 1 width	13.300 cm
Package 1 length	13.500 cm
Package 1 weight	426.000 g
Unit type of package 2	S03
Number of units in package 2	8
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	3.928 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	42 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	2.437945184760863
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0815633284478086
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.13046613410653746
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	38.24038028976167
Carbon footprint of the use phase [b2, b3, b4, b6]	38 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.6442398975928982
Carbon footprint of the end-of-life phase [c1 to c4]	0.6 kg CO2 eq.
Halogen-free status	Product contains halogen above thresholds
Energy efficiency optimized	False
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	41.534594834669775
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	Yes
Scip number	d4e820de-5d4d-442b-8a18-46a31f25b739
Halogen-free status	Product contains halogen above thresholds

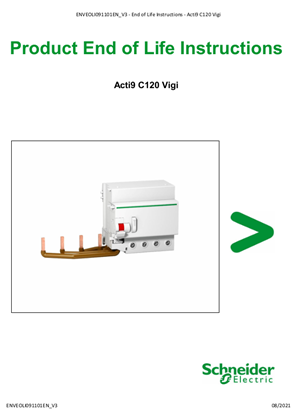

End of life manual availability	ENVEOLI091101EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
