Acti9 Contact OC for iSW, 3A, 415V
Item Number: A9A15096
This Acti9 iOF is a contact auxiliary for iSW. it has a changeover contact, rated current is 3A at 415VAC and 6A at 250VAC. Mounting is performed on the left of Acti9 iSW switches with operational current less than or equal to 32A. The width in 9mm pitches is 2. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The dimensions are (W) 18mm x (H) 77mm x (D) 75mm.
Specifications
Design
| Range of product | iSW 20...32 |
|---|---|
| Range | Acti9 |
| Product or component type | OC contact |
| Market segment | small commercial |
| Warranty | 18 months |
Physical
| [ie] rated operational current |
|
|---|---|
| Mounting mode | fixed |
| Mounting support | 35 mm DIN rail |
| Height | 77 mm |
| Width | 18 mm |
| Depth | 75 mm |
| Range compatibility | Acti9 iSW |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1103010EN |
| Eu rohs directive | Compliant |
Documents & downloads
-
All
-
CAD Files and Packs
-

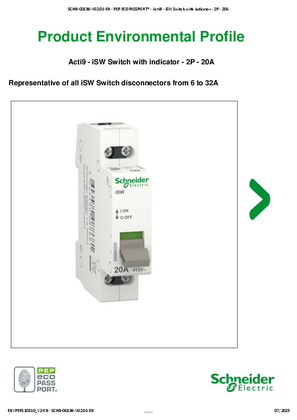

Environmental Disclosure
-

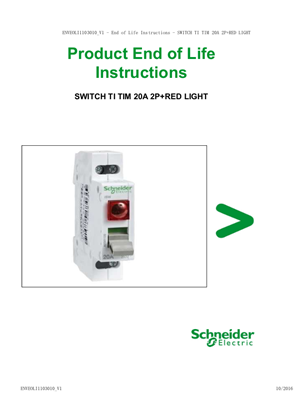

End of Life Manual
-
