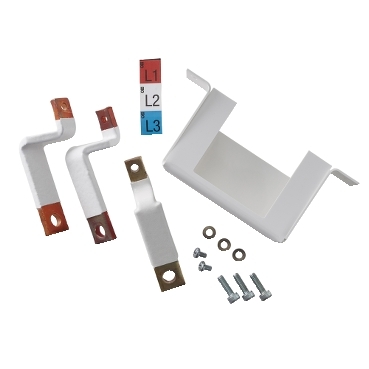

ACTI 9 3P 250A MCCB INS CON KIT TNA - Image

Home ProductsCircuit ProtectionActi9Connection kit

Acti9 Connection kit for 3P 250A - MCCB

Item Number: A9TNA250CK

1 PCE 0

This Acti9 accessory is a connection kit for 3P 250A MCCB. It is compatible with Acti9 distribution boards.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606481826466	-

Specifications

Design

Range	Acti9
Product or component type	connection kit

Physical

Range compatibility	Acti 9 distribution board
[in] rated current	250 A
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2304022EN
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Warranty duration(in months) bmecat	18
Accessory / separate part category	connection accessory
Poles description	3P
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.8 cm
Package 1 width	10.9 cm
Package 1 length	28.5 cm
Package 1 weight	312.0 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	30 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.47518099707921
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0933297633742614
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0554192319024676
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	27.365
Carbon footprint of the use phase [b2, b3, b4, b6]	27 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.769020417443999
Carbon footprint of the end-of-life phase [c1 to c4]	0.8 kg CO2 eq.
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	29.75795040979994
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
