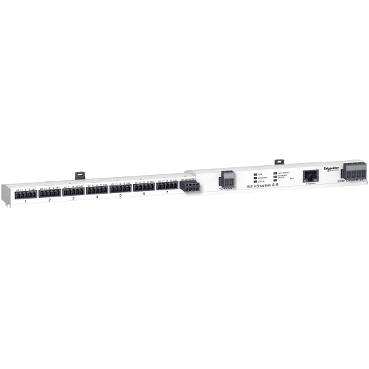

Acti9 Communication module Modbus TCP/IP and Wireless

Item Number: A9XMZA08

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width359 mm

Height22.5 mm

Depth42 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480982972	-

Specifications

Design

Range of product

Acti9

Range

Acti9

Product or component type

smart communication module

Device application

basic energy metering E
improved load monitoring E, U, I, P, Pf
load alarming
load control
breaker status monitoring

Physical

Protection type

short-circuit protection for analog input
against reverse polarity for auxiliary supply
against reverse polarity for input
overvoltage at 33 V DC for digital output

Inrush current

0.5 A for digital output
3 A for power supply

Local signalling

communication: 1 LED (yellow)
NS (Network Status): 1 LED (green, orange and red)
communication (LK/ACT 10/100): 1 LED (green and yellow)
status: 1 LED (green, orange and red)

Mounting position

horizontal and vertical on DIN rail

Connections - terminals

spring-loaded terminal Ti24 qty: 7 for digital input/output, ordered separately
RJ45 connector qty: 1 for ETHERNET, ordered separately
plug-in connector qty: 1 for supply circuit
plug-in connector qty: 1 for communication bus
plug-in connector qty: 1 for analog input

Clamping connection capacity

2 x 0.25 mm² for twisted shielded pairs cable, flexible with cable end for communication bus
2 x 0.25 mm² for twisted shielded pairs cable, flexible without cable end for communication bus
2 x 0.25 mm² for twisted shielded pairs cable, rigid with cable end for communication bus
2 x 0.25 mm² for twisted shielded pairs cable, rigid without cable end for communication bus
2 x 0.25...2 x 1.5 mm² for twisted shielded pairs cable, rigid with cable end for analog input
2 x 0.25...2 x 1.5 mm² for twisted shielded pairs cable, rigid without cable end for analog input
2 x 0.25...2 x 1.5 mm² for twisted shielded pairs cable, flexible with cable end for analog input
2 x 0.25...2 x 1.5 mm² for twisted shielded pairs cable, flexible without cable end for analog input
1 x 0.5...1 x 1.5 mm², flexible with cable end for control
1 x 0.5...1 x 1.5 mm², flexible without cable end for control
1 x 0.5...1 x 1.5 mm², rigid with cable end for control
1 x 0.5...1 x 1.5 mm², rigid without cable end for control
2 x 0.2...2 x 1.5 mm², flexible with cable end for supply circuit
2 x 0.2...2 x 1.5 mm², flexible without cable end for supply circuit
2 x 0.2...2 x 1.5 mm², rigid with cable end for supply circuit
2 x 0.2...2 x 1.5 mm², rigid without cable end for supply circuit

Wire stripping length

control: 10 mm
supply circuit: 7 mm
analog input: 7 mm
communication bus: 7 mm

Communication network type

RS485 Modbus RTU master SUB-D 9 9.6...19.2 kbauds
Ethernet Modbus TCP/IP server RJ45 10/100 Mbit/s

Height

22.5 mm

Width

359 mm

Depth

42 mm

Net weight

180 g

Provided equipment

set of 1 connector
set of 1 bus connector
set of 1 power supply connector
set of 2 locking clips

Range compatibility

Acti 9 iTL auxiliary
Multi9 C60
Linergy Linergy FM
Acti 9 iOF+SD 24
Acti 9 iACT24
Acti 9 iATL24
PowerLogic pulse output meter
PowerLogic Modbus meter
Acti 9 PowerTag wireless energy sensor
Acti 9 RCA iC60
Acti 9 Acti9 iCT auxiliary
Acti 9 Acti9 iC60
Acti 9 Acti9 iID
Acti 9 Acti9 iSW-NA
Acti 9 Acti9 iDPN Vigi
Acti 9 Acti9 C40
Acti 9 Acti9 DT40
Acti 9 Acti9 DT60
Acti 9 Acti9 I-NA
Acti 9 Acti9 ITG40
Acti 9 Acti9 iDPN
Acti 9 Acti9 Reflex iC60 Ti24 connector

Ip degree of protection

IP20

Environmental characteristic

corrosive 3C2 conforming to IEC 60721-3-3
salt mist 2 conforming to IEC 60068-2-52

Relative humidity

93 % at 40 °C

Ambient air temperature for operation

-25...60 °C

Ambient air temperature for storage

-40...80 °C

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Compliant with Exemptions

Eu rohs directive

Compliant By Exemption

China rohs regulation

Others

Legacy weee scope

Package 1 bare product quantity

Package 2 bare product quantity

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Product name

Acti9 Smartlink

Device short name

Smartlink SI B Ethernet

Connected auxiliaries

up to 7 wired devices
up to 20 wireless devices

Group of channels

1 group of 7 digital channels
1 group of 1 analog channel

Maximum supply current

1.5 A

[us] rated supply voltage

24 V DC +/- 20 %

Connectivity to devices

analog input
digital input and output
pulse output meter
wireless energy sensor

Communication service

Ethernet Modbus TCP/IP server
web server

Web server

BMS controller compatible
embedded web page

Transmission support medium

radio frequency 2.4-2.4835 GHz PowerTag 20

Web services

web page

Application specific i/o

pulse converter
pulse totalising counter

Immunity to microbreaks

10 ms

Reset

factory reset on front face

Input/output type

2 inputs per analog channel
2 inputs + 1 output per digital channel

Input type

current for analog input, 4...20 mA
voltage for analog input, 0...10 V DC
current sink for digital input, 24 V DC +/- 20 % at 2.5 mA

Maximum permanent current

0.005 A for digital input

Absolute accuracy error

+/- 1 % of full scale for analog input 12 bits

Electronic filtering time

2 ms for digital input from state 0 to state 1
2 ms for analog input from state 0 to state 1

Output type

logic current source: 24 V - DC - 100 mA

Maximum voltage drop

<1 V at state 1 digital output

Location of connection

front

9 mm pitches

0 useful

Commissioning interface

ECOREACH
web page

Compatibility code

Acti 9 Smartlink IP

Pollution degree

Electromagnetic compatibility

resistance to electrostatic discharge (air discharge), 8 kV, conforming to IEC 61000-4-2
resistance to electrostatic discharge (contact discharge), 4 kV, conforming to IEC 61000-4-2
resistance to radiated electromagnetic fields (80 MHz...3 GHz), 10 V/m, conforming to IEC 61000-4-3
power supply: resistance to fast transient (5...100 kHz), 2 kV, conforming to IEC 61000-4-4
input/output: resistance to fast transient, 1 kV, conforming to IEC 61000-4-4
communication bus: resistance to fast transient, 1 kV, conforming to IEC 61000-4-4
conducted EMC (0.15...80 MHz), 10 V, conforming to IEC 61000-4-6
immunity to magnetic fields at network frequency, 30 A/m, conforming to IEC 61000-4-8
radiated emission (30...1000 MHz), class A, conforming to IEC 61131-3 Ed.3
conducted emission (0.15...30 MHz), class A, conforming to IEC 61131-2

Vibration resistance

1 gn, amplitude = 3.5 mm (f = 5-300 Hz)10 cycles conforming to IEC 60068-2-6

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Fire resistance
