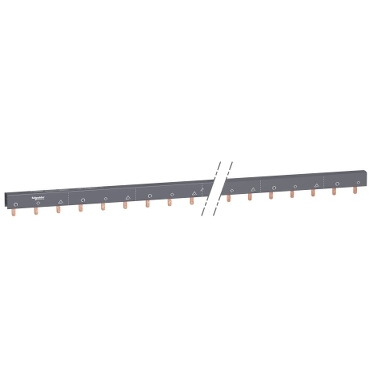

Acti9 Comb busbar 3L balanced with Aux, 18mm pitch, 57 modules

Home ProductsCircuit ProtectionActi9Comb busbar

Acti9 Comb busbar 3L balanced with Aux, 18mm pitch, 57 modules

Item Number: A9XAH657

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

comb busbar

Warranty

18 months

Physical

Mounting mode

horizontal

Standards

EN/IEC 61439-1

Connector type

tooth

Marking

L1 L2 L3

Device presentation

cuttable

Provided equipment

set of 10 end piece

[ie] rated operational current

100 A at 40 °C

[ue] rated operational voltage

415 V AC

Width

1000 mm

Range compatibility

  • Acti9 Acti9 iC60
  • Acti9 Acti9 iK60
  • Acti9 Acti9 iID
  • Acti9 Acti9 iID K
  • Acti9 Acti9 iSW
  • Acti9 Acti9 iSW-NA
  • Multi9 Multi9 C60

Ip degree of protection

IP20 with end-pieces and tooth covers

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2503006EN

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

California proposition 65

WARNING: This product can expose you to chemicals including: DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Brand labelled

Substance regulation data deliverable

Yes

Package 3 bare product quantity

135

Average percentage of recycled plastic content

0 %

Package 2 bare product quantity

5

Package 1 bare product quantity

1

Legacy weee scope

In

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Accessory / separate part category

connection accessory

Lines description

3L

Total number of 18 mm modules

57

Number of ways

38 ways Aux + 1 L

Distribution type

Aux L1 Aux L2 Aux L3

Poles configuration for 1 way

1 x 1P

Connection pitch

18 mm

Distance between way

27 mm

Insulation

insulated

[ui] rated insulation voltage

500 V AC conforming to IEC 61439-2

Mounting location

  • top or bottom on tunnel type terminals
  • top or bottom on double terminal

9 mm pitches

114

Fire resistance

960 °C ( 30 s ) conforming to IEC 60695-2-1

Pollution degree

3 conforming to IEC 60947-7-1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

0.520 cm

Package 1 width

0.950 cm

Package 1 length

106.000 cm

Package 1 weight

520.000 g

Unit type of package 2

CAR

Number of units in package 2

5

Package 2 height

5.200 cm

Package 2 width

9.000 cm

Package 2 length

107.000 cm

Package 2 weight

2.960 kg

Unit type of package 3

P12

Number of units in package 3

135

Package 3 height

45.000 cm

Package 3 width

80.000 cm

Package 3 length

120.000 cm

Package 3 weight

91.920 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

11 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

2.5606041391006142

Carbon footprint of the manufacturing phase [a1 to a3]

3 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.10206619035441167

Carbon footprint of the distribution phase [a4]

0.1 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.007082544352024777

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

7.616043838166406

Carbon footprint of the use phase [b2, b3, b4, b6]

8 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

1.1047239099801403

Carbon footprint of the end-of-life phase [c1 to c4]

1 kg CO2 eq.

Energy efficiency optimized

False

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

11.390520621953598

Bvb

Accepted

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Scip number

41a8b1b0-6424-4682-ac9c-98796ac87431

End of life manual availability

N/A

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications
