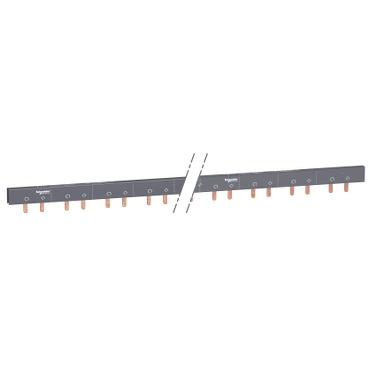

Acti9 Comb busbar 1L+N with Aux, 18mm pitch, 57 modules, 100A

Item Number: A9XAH257

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480485145	-
5	BB1	13606480485142	-

Specifications

Design

Range	Acti9
Product or component type	comb busbar

Physical

Mounting mode	horizontal
Standards	EN/IEC 61439-1
Connector type	tooth
Marking	N L
Device presentation	cuttable
Provided equipment	set of 10 end piece
[ie] rated operational current	100 A at 40 °C
[ue] rated operational voltage	415 V AC
Width	1000 mm
Range compatibility	Acti9 iC60 Acti9 iK60 Acti9 iID Acti9 iID K Acti9 iSW Acti9 iSW-NA Multi9 C60
Ip degree of protection	IP20 with end-pieces and tooth covers
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2503006EN
Eu rohs directive	Compliant

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Brand labelled
Substance regulation data deliverable	Yes
Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	5
Package 3 bare product quantity	135
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	At least in Europe
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Accessory / separate part category	connection accessory
Lines description	1L + N
Total number of 18 mm modules	57
Number of ways	22 ways Aux + N + 1 L
Distribution type	Aux N L
Poles configuration for 1 way	1 x 1P + N 1 x 2P
Connection pitch	18 mm
Distance between way	45 mm
Insulation	insulated
[ui] rated insulation voltage	500 V AC conforming to IEC 61439-2
Mounting location	top or bottom on tunnel type terminals top or bottom on double terminal
9 mm pitches	114
Fire resistance	960 °C ( 30 s ) conforming to IEC 60695-2-1
Pollution degree	3 conforming to IEC 60947-7-1
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.5 cm
Package 1 width	9 cm
Package 1 length	107 cm
Package 1 weight	433 g
Unit type of package 2	CAR
Number of units in package 2	5
Package 2 height	5.5 cm
Package 2 width	9 cm
Package 2 length	107 cm
Package 2 weight	2.167 kg
Unit type of package 3	P12
Number of units in package 3	135
Package 3 height	75 cm
Package 3 width	80 cm
Package 3 length	120 cm
Package 3 weight	70.509 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	8 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	2.1118887471058403
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.08418030556849572
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.005841412770336626
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	5.254939904066475
Carbon footprint of the use phase [b2, b3, b4, b6]	5 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.9111341962312395
Carbon footprint of the end-of-life phase [c1 to c4]	0.9 kg CO2 eq.
Pvc free	Yes
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	8.367984565742388
Bvb	Accepted
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Scip number	41a8b1b0-6424-4682-ac9c-98796ac87431
Oecd pfas declaration url	https://download.schneider-electric.com/files?p_Doc_Ref=A9XAH257_OECD_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Pop declaration url	https://download.schneider-electric.com/files?p_Doc_Ref=A9XAH257_POP_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Oecd pfas regulation	No OECD PFAS Chemicals Present
Pop directive	No POPs
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
