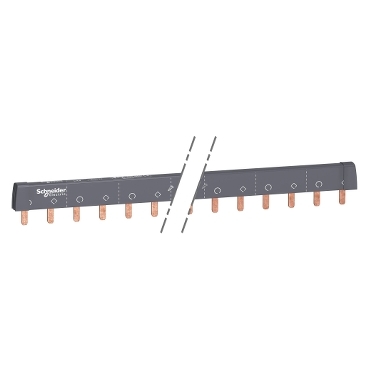

Acti9 Comb Busbar 1L+N, 18mm pitch, 24 modules, 100 A

Home ProductsCircuit ProtectionActi9Comb Busbar

Acti9 Comb Busbar 1L+N, 18mm pitch, 24 modules, 100 A

Item Number: A9XPH224

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

comb busbar

Warranty

18 months

Physical

Mounting mode

horizontal

Standards

EN/IEC 61439-1

Connector type

tooth

Marking

N L

Device presentation

cuttable

[ie] rated operational current

100 A at 40 °C

[ue] rated operational voltage

415 V AC

Width

430 mm

Range compatibility

  • Acti9 Acti9 iC60
  • Acti9 Acti9 iK60
  • Acti9 Acti9 iID
  • Acti9 Acti9 iID K
  • Acti9 Acti9 iSW
  • Acti9 Acti9 iSW-NA
  • Multi9 Multi9 C60

Ip degree of protection

IP20 with end-pieces and tooth covers

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2503006EN

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

California proposition 65

WARNING: This product can expose you to chemicals including: DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Brand labelled

Substance regulation data deliverable

Yes

Package 1 bare product quantity

1

Legacy weee scope

In

At least in Europe

Package 2 bare product quantity

5

Package 3 bare product quantity

55

Package 4 bare product quantity

220

Average percentage of recycled plastic content

0 %

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Accessory / separate part category

connection accessory

Lines description

1L + N

Total number of 18 mm modules

24

Number of ways

12 ways N + 1 L

Distribution type

N L

Poles configuration for 1 way

  • 1 x 1P + N
  • 1 x 2P

Connection pitch

18 mm

Distance between way

36 mm

Insulation

insulated

[ui] rated insulation voltage

500 V AC conforming to IEC 61439-2

Mounting location

  • top or bottom on tunnel type terminals
  • top or bottom on double terminal

9 mm pitches

48

Fire resistance

960 °C ( 30 s ) conforming to IEC 60695-2-1

Pollution degree

3 conforming to IEC 60947-7-1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.6 cm

Package 1 width

8.4 cm

Package 1 length

46.6 cm

Package 1 weight

166 g

Unit type of package 2

BB1

Number of units in package 2

5

Package 2 height

5.6 cm

Package 2 width

8.4 cm

Package 2 length

46.6 cm

Package 2 weight

934 g

Unit type of package 3

S04

Number of units in package 3

55

Package 3 height

30 cm

Package 3 width

40 cm

Package 3 length

60 cm

Package 3 weight

11.147 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

4 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.8096386420775276

Carbon footprint of the manufacturing phase [a1 to a3]

0.8 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.03227235733110921

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.002239433071306882

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

2.446973608534228

Carbon footprint of the use phase [b2, b3, b4, b6]

2 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.3493031791556253

Carbon footprint of the end-of-life phase [c1 to c4]

0.3 kg CO2 eq.

Energy efficiency optimized

False

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

3.6404272201697974

Bvb

Accepted

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

41a8b1b0-6424-4682-ac9c-98796ac87431

End of life manual availability

N/A

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
