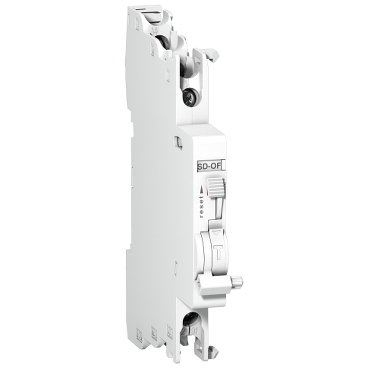

Acti9 Auxiliary contact OC plus 1 SD and OF AC DC

Item Number: A9N26929

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width9 mm

Height90 mm

Depth73.5 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480382949	-
12	BB1	13606480382946	-

Specifications

Design

Range	Acti9
Range of product	C60 I-NA Librio Clario DPN C120 ID ProDis DPN Vigi
Product or component type	double OC or fault contact
Product compatibility	SW60-DC C60 C120 C60PV-DC C120NA-DC C60H-DC ITG40 ID C40 DPN Vigi C40 iDPN IDc DT60 C60NA-DC DT40
Market segment	small commercial residential
Warranty	18 months

Physical

[in] rated current	DC-12 1 A at 130 V, DC DC-12 2 A at 48 V, DC DC-12 6 A at 24 V, DC AC-12 3 A at 415 V, AC 50/60 Hz AC-12 6 A at 240 V, AC 50/60 Hz
Standards	EN/IEC 60947-5-1
Product certifications	ASTA ASEFA LCIE KEMA
Range compatibility	Acti9 DPN Vigi Acti9 RCCB-ID 125A Acti9 iDPN Vigi Acti9 C60H-DC Acti9 C60PV-DC Acti9 C40 Acti9 ID C40 Acti9 C120 Acti9 DT40 Acti9 DT60 Acti9 IDc Acti9 C120NA-DC Acti9 iDPN Acti9 ITG40 Acti9 SW60-DC Acti9 C60NA-DC Acti9 C40 Vigi Acti9 DT40 Vigi Acti9 xC60
Mounting mode	fixed
Mounting support	DIN rail
Height	90 mm
Width	9 mm
Depth	73.5 mm
Net weight	38 g
Connections - terminals	screw clamp terminal (top and bottom): 2 cable(s) 1.5-1.5 mm² - flexible screw clamp terminal (top and bottom): 1 cable(s) 0.5-2.5 mm² - rigid screw clamp terminal (top and bottom): 2 cable(s) 1.5-1.5 mm² - flexible with ferrule
Wire stripping length	9 mm
Ip degree of protection	IP20 conforming to EN/IEC 60947-5-1
Ambient air temperature for operation	-25...50 °C
Ambient air temperature for storage	-40...85 °C
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2206015EN
China rohs regulation	X
Eu rohs directive	Compliant

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	12
Package 3 bare product quantity	108
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Device short name	OF and OF or OF and SD
Signal contacts composition	2 C/O
9 mm pitches	1
Comb busbar and distribution block compatibility	NO
Tightening torque	1 N.m
Compatibility code	OF and OF or OF and SD
Pollution degree	3 conforming to EN/IEC 60947-5-1
Tropicalisation	2 conforming to EN/IEC 60947-5-1
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.2 cm
Package 1 width	8 cm
Package 1 length	9.2 cm
Package 1 weight	46 g
Unit type of package 2	BB1
Number of units in package 2	12
Package 2 height	8.7 cm
Package 2 width	10 cm
Package 2 length	26.5 cm
Package 2 weight	609 g
Unit type of package 3	S03
Number of units in package 3	108
Package 3 height	30 cm
Package 3 width	30 cm
Package 3 length	40 cm
Package 3 weight	5.94 kg
Sustainable packaging	No
Halogen-free status	Product contains halogen above thresholds
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Bvb	Accepted
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	Yes
Scip number	28bfb466-f950-4025-8655-16cfe4e6c6f3
China rohs label	1
Halogen-free status	Product contains halogen above thresholds
End of life manual availability	ENVEOLI2206015
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Product Brochures
End of Life Manual
Installation Instruction
Declaration of Conformity
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

Auxiliary contact OC plus 1 SD and OF - 3D CAD

VERSION

1.0

DATE

04 Oct 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.1 MB

ZIP

Acti9 auxiliaries brochure

VERSION

2.0

DATE

02 Aug 2023

REVISION

2.0

DOWNLOAD (ZIP) 2.4 MB

ZIP

Acti9 - Auxiliary Contact - iOF 1OC 100mA-6A - Product End of Life Instructions

VERSION

1.0

DATE

25 Feb 2026

REVISION

1.0

DOWNLOAD (ZIP) 289.7 KB

ZIP

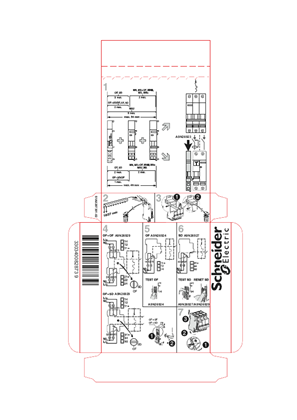

9 mm Auxiliaries for C60, C120, DPN - Instructions for box
