Acti9 Auxiliary contact iSD+OF, 2 C/O, 2mA to 100mA, 24VAC to 250VAC, 24VDC to 220VDC, top and bottom connection

Home ProductsCircuit ProtectionActi9Auxiliary contact

Acti9 Auxiliary contact iSD+OF, 2 C/O, 2mA to 100mA, 24VAC to 250VAC, 24VDC to 220VDC, top and bottom connection

Item Number: A9A26919

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width9 mm

Height icon

Height90 mm

Depth icon

Depth73 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

OC and fault contact

Product compatibility

  • iID
  • iDPN Vigi
  • iSW-NA
  • ARA
  • iC60
  • double terminal
  • single terminal
  • RCA

Market segment

  • small commercial
  • critical buildings
  • buildings
  • healthcare
  • industry
  • data center
  • infrastructures

Physical

[in] rated current

  • 2...100 mA at 24...240 V, AC 50/60 Hz
  • 2...100 mA at 24 V, DC
  • 2...100 mA at 48 V, DC
  • 2...100 mA at 60 V, DC
  • 2...100 mA at 130 V, DC
  • 2...100 mA at 220 V, DC

Standards

  • EN/IEC 60947-5-1
  • EN/IEC 60947-5-4
  • GB/T 14048.5
  • GB/T 14048.17

Product certifications

  • CE
  • UKCA

Range compatibility

  • Acti9 iSW-NA
  • Acti9 iC60
  • Acti9 iID
  • Acti9 ARA
  • Acti9 RCA
  • Acti9 iDPN Vigi
  • Acti9 iC40

Local signalling

mechanical indicator

Mounting mode

clip-on

Mounting support

DIN rail

Height

90 mm

Width

9 mm

Depth

73 mm

Net weight

40 g

Connections - terminals

  • screw clamp terminal (top and bottom) 1 cable(s) 1-4 mm² - rigid
  • screw clamp terminal (top and bottom) 1 cable(s) 0.5-2.5 mm² - flexible
  • screw clamp terminal (top and bottom) 2 cable(s) 2.5-2.5 mm² - rigid
  • screw clamp terminal (top and bottom) 2 cable(s) 1.5-1.5 mm² - flexible with ferrule

Wire stripping length

10 mm

Ip degree of protection

IP20

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-25...70 °C

Ambient air temperature for storage

-40...85 °C

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2203011EN

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

No

Package 1 bare product quantity

1

Package 2 bare product quantity

12

Package 3 bare product quantity

120

Package 4 bare product quantity

960

Average percentage of recycled plastic content

0 %

At least in Europe

Legacy weee scope

In

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

iSD+OF

Signal contacts composition

2 C/O

9 mm pitches

1

Quality labels

  • EAC
  • CCC

Operating mode

daisy chain up to 100 devices

[ui] rated insulation voltage

500 V

[uimp] rated impulse withstand voltage

4 kV

Mounting location

left side of circuit-breaker

Comb busbar and distribution block compatibility

NO

Tightening torque

1 N.m top or bottom

Compatibility code

iSD+OF

Pollution degree

3

Tropicalisation

2

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.100 cm

Package 1 width

8.000 cm

Package 1 length

9.400 cm

Package 1 weight

49.000 g

Unit type of package 2

BB1

Number of units in package 2

12

Package 2 height

8.500 cm

Package 2 width

10.000 cm

Package 2 length

27.000 cm

Package 2 weight

663.000 g

Unit type of package 3

S03

Number of units in package 3

120

Package 3 height

30.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

7.310 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

0.4 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.38670110621871595

Carbon footprint of the manufacturing phase [a1 to a3]

0.4 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.007141056654294664

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0009097639374488265

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0.00013910248841999994

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.00801552589420863

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Energy efficiency optimized

False

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.40290655519308805

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

End of life manual availability

N/A

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Product Brochures

  • Technical Data Catalogues

  • Installation Instruction

  • Environmental Disclosure

  • Certificates (MSDS)

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Auxiliary contact, Acti9 A9A, iSD+OF, 2 C/O, 2mA to 100mA, 24VAC to 250VAC, 24VDC to 220VDC, top and bottom connection - 3D CAD
ZIP

Auxiliary contact, Acti9 A9A, iSD+OF, 2 C/O, 2mA to 100mA, 24VAC to 250VAC, 24VDC to 220VDC, top and bottom connection - 3D CAD

VERSION

1.0

DATE

23 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.5 MB
Acti9 auxiliaries brochure
ZIP

Acti9 auxiliaries brochure

VERSION

2.0

DATE

02 Aug 2023

REVISION

2.0

DOWNLOAD (ZIP) 2.4 MB
Multi9 - Catalog 19 December 2024 - Multistandard protection for OEM applications
ZIP

Multi9 - Catalog 19 December 2024 - Multistandard protection for OEM applications

VERSION

2.12

DATE

20 Dec 2024

REVISION

2.12

DOWNLOAD (ZIP) 47.2 MB
Safety manual - safety messages
ZIP

Safety manual - safety messages

VERSION

2.0

DATE

24 Apr 2025

REVISION

2.0

DOWNLOAD (ZIP) 1.9 MB
Acti9 Electrical Auxiliaries - Instruction sheet
ZIP

Acti9 Electrical Auxiliaries - Instruction sheet

VERSION

1.0

DATE

24 Apr 2025

REVISION

1.0

DOWNLOAD (ZIP) 1.2 MB
Acti9, Auxiliary Contact - iOF 2-100mA - Product Environmental Profile
ZIP

Acti9, Auxiliary Contact - iOF 2-100mA - Product Environmental Profile

VERSION

1.0

DATE

14 Jun 2023

REVISION

1.0

DOWNLOAD (ZIP) 322.1 KB

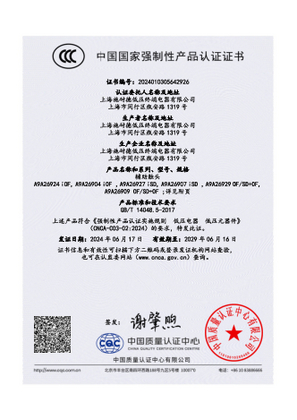

CCC_ iOF iSD SD+OF OF+OF_ 辅助触头_SSLVTA
