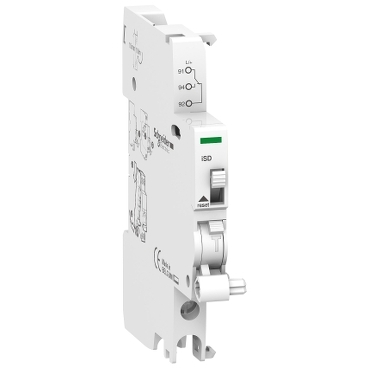

Acti9 Auxiliary contact iSD, 1OC, AC/DC

Home ProductsCircuit ProtectionActi9Auxiliary contact

Acti9 Auxiliary contact iSD, 1OC, AC/DC

Item Number: A9A26927

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width9 mm

Height icon

Height86 mm

Depth icon

Depth73 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Range of product

  • iSW-NA
  • iC60
  • iID
  • iDPN Vigi
  • RCA
  • ARA

Product or component type

fault contact

Product compatibility

single terminal

Market segment

  • small commercial
  • residential

Warranty

18 months

Physical

[in] rated current

  • DC-12 1 A at 130 V, DC
  • DC-12 1.5...1.5 A at 60 V, DC
  • DC-12 2 A at 48 V, DC
  • DC-12 6 A at 24 V, DC
  • AC-12 3 A at 415 V, AC 50/60 Hz
  • AC-12 6 A at 240 V, AC 50/60 Hz

Standards

EN/IEC 60947-5-1

Range compatibility

  • Acti9 iC60H RCBO
  • Acti9 iC60H RCBO PoN
  • Acti9 iC60H2 RCBO
  • Acti9 iC60N RCBO
  • Acti9 iKQE RCBO

Local signalling

mechanical indicator

Mounting mode

clip-on

Mounting support

DIN rail

Height

86 mm

Width

9 mm

Depth

73 mm

Net weight

33 g

Connections - terminals

  • screw clamp terminal (bottom) 2 cable(s) 2.5-2.5 mm² - rigid
  • screw clamp terminal (bottom) 2 cable(s) 1.5-1.5 mm² - flexible with ferrule
  • screw clamp terminal (bottom) 1 cable(s) 0.5-2.5 mm² - flexible
  • screw clamp terminal (bottom) 1 cable(s) 1-4 mm² - rigid

Wire stripping length

10 mm

Ip degree of protection

IP20 conforming to EN/IEC 60947-5-1

Ambient air temperature for operation

-35...70 °C

Ambient air temperature for storage

-40...85 °C

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP091004EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

12

Package 3 bare product quantity

120

Package 4 bare product quantity

960

Legacy weee scope

In

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

At least in Europe

Device short name

iSD

Signal contacts composition

1 C/O

9 mm pitches

1

[ui] rated insulation voltage

500 V

[uimp] rated impulse withstand voltage

4 kV

Comb busbar and distribution block compatibility

top: YES

Tightening torque

1 N.m

Compatibility code

iSD

Pollution degree

3 conforming to EN/IEC 60947-5-1

Tropicalisation

2 conforming to EN/IEC 60947-5-1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.8 cm

Package 1 width

2 cm

Package 1 length

9.2 cm

Package 1 weight

40 g

Unit type of package 2

BB1

Number of units in package 2

12

Package 2 height

8.5 cm

Package 2 width

10 cm

Package 2 length

27.5 cm

Package 2 weight

570 g

Unit type of package 3

S03

Number of units in package 3

120

Package 3 height

30 cm

Package 3 width

30 cm

Package 3 length

40 cm

Package 3 weight

6.373 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

0.4 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.365951542

Carbon footprint of the manufacturing phase [a1 to a3]

0.4 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.00597437

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.000793267

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0.037552778

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.0066467

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.416918658

Bvb

Accepted

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

9da5f8d9-d60f-424a-bb30-a856a097686c

End of life manual availability

ENVEOLI100608EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
