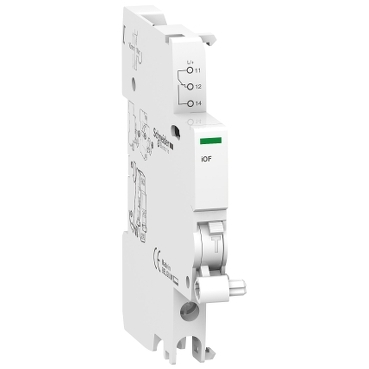

Acti9 Auxiliary contact iOF, 1 OC, AC/DC

Item Number: A9A26924

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width9 mm

Height86 mm

Depth73 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480087905	-
12	BB1	13606480087902	-

Specifications

Design

Range	Acti9
Range of product	iID ARA iSW-NA RCA iSW 40...125 iC60 iDPN Vigi
Product or component type	OC contact
Product compatibility	single terminal
Market segment	small commercial residential
Warranty	18 months

Physical

[in] rated current	AC-12 6 A at 240 V, AC 50/60 Hz AC-12 3 A at 415 V, AC 50/60 Hz DC-12 2 A at 48 V, DC DC-12 1.5...1.5 A at 60 V, DC DC-12 1 A at 130 V, DC DC-12 6 A at 24 V, DC
Standards	EN/IEC 60947-5-1
Range compatibility	Acti9 iC60H RCBO Acti9 iC60H RCBO PoN Acti9 iC60H2 RCBO Acti9 iC60N RCBO Acti9 iKQE RCBO
Mounting mode	clip-on
Mounting support	DIN rail
Height	86 mm
Width	9 mm
Depth	73 mm
Net weight	32 g
Connections - terminals	screw clamp terminal (bottom): 1 cable(s) 1-4 mm² - rigid screw clamp terminal (bottom): 1 cable(s) 0.5-2.5 mm² - flexible screw clamp terminal (bottom): 2 cable(s) 2.5-2.5 mm² - rigid screw clamp terminal (bottom): 2 cable(s) 1.5-1.5 mm² - flexible with ferrule
Wire stripping length	10 mm
Ip degree of protection	IP20 conforming to EN/IEC 60947-5-1
Ambient air temperature for operation	-35...70 °C
Ambient air temperature for storage	-40...85 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP0910004FR
China rohs regulation	X
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	12
Package 3 bare product quantity	120
Package 4 bare product quantity	960
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Device short name	iOF
Signal contacts composition	1 C/O
9 mm pitches	1
[ui] rated insulation voltage	500 V
[uimp] rated impulse withstand voltage	4 kV
Comb busbar and distribution block compatibility	top: YES
Tightening torque	1 N.m
Compatibility code	iOF
Pollution degree	3 conforming to EN/IEC 60947-5-1
Tropicalisation	2 conforming to EN/IEC 60947-5-1
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.8 cm
Package 1 width	2 cm
Package 1 length	9.2 cm
Package 1 weight	40 g
Unit type of package 2	BB1
Number of units in package 2	12
Package 2 height	8.5 cm
Package 2 width	10 cm
Package 2 length	27.2 cm
Package 2 weight	570 g
Unit type of package 3	S03
Number of units in package 3	120
Package 3 height	30 cm
Package 3 width	30 cm
Package 3 length	40 cm
Package 3 weight	6.35 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.6 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.36354
Carbon footprint of the manufacturing phase [a1 to a3]	0.4 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.005935
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.00078804
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.27038
Carbon footprint of the use phase [b2, b3, b4, b6]	0.3 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.0066029
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.64724
Bvb	Accepted
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	9da5f8d9-d60f-424a-bb30-a856a097686c
China rohs label	2
End of life manual availability	ENVEOLI100608EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
