Acti9 Auxiliary contact iOF, 1 C/O, 2mA to 100mA, 24VAC to 250VAC, 24VDC to 220VDC, bottom connection

Item Number: A9A26914

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width9 mm

Height86 mm

Depth73 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606482129139	-

Specifications

Design

Range	Acti9
Product or component type	OC contact
Product compatibility	single terminal
Market segment	small commercial critical buildings buildings healthcare industry data center infrastructures

Physical

[in] rated current	2...100 mA at 24...240 V, AC 50/60 Hz 2...100 mA at 24 V, DC 2...100 mA at 48 V, DC 2...100 mA at 60 V, DC 2...100 mA at 130 V, DC 2...100 mA at 220 V, DC
Standards	EN/IEC 60947-5-1 EN/IEC 60947-5-4 GB/T 14048.5 GB/T 14048.17
Product certifications	CE UKCA
Range compatibility	Acti9 iC60H RCBO Acti9 iC60H RCBO PoN Acti9 iC60H2 RCBO Acti9 iC60N RCBO Acti9 iKQE RCBO Acti9 iSW Acti9 iCVm40 Acti9 iCVr40 Acti9 iDDm40
Mounting mode	clip-on
Mounting support	DIN rail
Height	86 mm
Width	9 mm
Depth	73 mm
Net weight	32 g
Connections - terminals	screw clamp terminal (bottom): 1 cable(s) 1-4 mm² - rigid screw clamp terminal (bottom): 1 cable(s) 0.5-2.5 mm² - flexible screw clamp terminal (bottom): 2 cable(s) 2.5-2.5 mm² - rigid screw clamp terminal (bottom): 2 cable(s) 1.5-1.5 mm² - flexible with ferrule
Wire stripping length	10 mm
Ip degree of protection	IP20
Relative humidity	95 % at 55 °C
Ambient air temperature for operation	-25...70 °C
Ambient air temperature for storage	-40...85 °C
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2206015EN
Eu rohs directive	Compliant

Others

Life cycle assessment data	No
Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	12
Package 3 bare product quantity	120
Package 4 bare product quantity	960
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	At least in Europe
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Device short name	iOF
Signal contacts composition	1 C/O
9 mm pitches	1
Quality labels	EAC CCC
Operating mode	daisy chain up to 100 devices
[ui] rated insulation voltage	500 V
[uimp] rated impulse withstand voltage	4 kV
Mounting location	left side of circuit-breaker
Comb busbar and distribution block compatibility	top: YES
Tightening torque	1 N.m bottom
Compatibility code	iOF
Pollution degree	3
Tropicalisation	2
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.100 cm
Package 1 width	8.000 cm
Package 1 length	9.400 cm
Package 1 weight	40.000 g
Unit type of package 2	BB1
Number of units in package 2	12
Package 2 height	8.500 cm
Package 2 width	10.000 cm
Package 2 length	27.000 cm
Package 2 weight	561.000 g
Unit type of package 3	S03
Number of units in package 3	120
Package 3 height	30.000 cm
Package 3 width	30.000 cm
Package 3 length	40.000 cm
Package 3 weight	6.255 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.9 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.24898170002758027
Carbon footprint of the manufacturing phase [a1 to a3]	0.2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.00916740048445964
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.012690691576703989
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.5311163929133567
Carbon footprint of the use phase [b2, b3, b4, b6]	0.5 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.0680227237000319
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Pvc free	Yes
Silicone-free	No
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.8699789087021326
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Tsca declaration url	https://download.schneider-electric.com/files?p_Doc_Ref=A9A26914_TSCA_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Oecd pfas declaration url	https://download.schneider-electric.com/files?p_Doc_Ref=A9A26914_OECD_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Pop declaration url	https://download.schneider-electric.com/files?p_Doc_Ref=A9A26914_POP_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Tsca regulation	Does not contain Section 6H Chemical
Oecd pfas regulation	No OECD PFAS Chemicals Present
Pop directive	No POPs
Pvc free	Yes
Silicone-free	No
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Product Brochures
Installation Instruction
Environmental Disclosure
Declaration of Conformity
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

Auxiliary contact, Acti9 A9A, iOF, 1 C/O, 2mA to 100mA, 24VAC to 250VAC, 24VDC to 220VDC, bottom connection - 3D CAD

VERSION

1.0

DATE

23 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 1022.1 KB

ZIP

Acti9 auxiliaries brochure

VERSION

2.0

DATE

02 Aug 2023

REVISION

2.0

DOWNLOAD (ZIP) 2.4 MB

ZIP

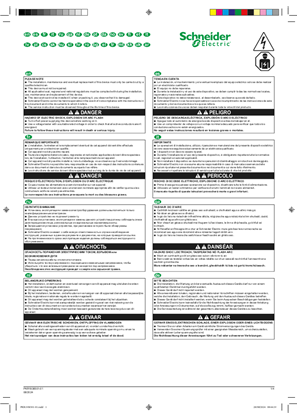

Safety manual - safety messages

VERSION

2.0

DATE

02 June 2026

REVISION

2.0

DOWNLOAD (ZIP) 1.9 MB

ZIP

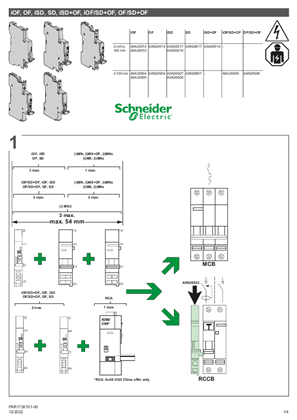

Acti9 Electrical Auxiliaries - Instruction sheet
