Acti9 Auxiliary contact A9N, OF+SD, 1 NO + 1 NC, 2mA to 100mA, 24VDC, Ti24 connector on top (sold separately)

Home ProductsCircuit ProtectionActi9Auxiliary contact

Acti9 Auxiliary contact A9N, OF+SD, 1 NO + 1 NC, 2mA to 100mA, 24VDC, Ti24 connector on top (sold separately)

Item Number: A9N26899

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width9 mm

Height icon

Height85.5 mm

Depth icon

Depth73.5 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Range of product

  • C40
  • ID
  • DPN Vigi
  • DPN
  • Librio
  • ProDis
  • I-NA
  • ITG40
  • C120
  • C60
  • Clario
  • DT60
  • DT40

Product or component type

OC and fault contact

Device application

for Smartlink interface

Product compatibility

  • IDc
  • DT40
  • DPN Vigi
  • C60H-DC
  • C60
  • with PLC
  • SW60-DC
  • C120NA-DC
  • ITG40
  • DT60
  • ID C40
  • C60PV-DC
  • C40
  • iDPN
  • C120
  • C60NA-DC

Market segment

  • small commercial
  • residential

Warranty

18 months

Physical

[in] rated current

DC-12 2...100 mA at 24 V, DC +/- 20 %

Standards

  • IEC 60947-5-4
  • IEC 60947-5-1

Range compatibility

  • Acti9 DPN Vigi
  • Acti9 RCCB-ID 125A
  • Acti9 connectors Ti24
  • Acti9 C60H-DC
  • Acti9 C60PV-DC
  • Acti9 C40
  • Acti9 ID C40
  • Acti9 C120
  • Acti9 DT40
  • Acti9 DT60
  • Acti9 IDc
  • Acti9 C120NA-DC
  • Acti9 DPN
  • Acti9 iDPN
  • Acti9 ITG40
  • Acti9 SW60-DC
  • Acti9 C60NA-DC

Local signalling

mechanical indicator

Mounting mode

fixed

Mounting support

DIN rail

Height

85.5 mm

Width

9 mm

Depth

73.5 mm

Net weight

28 g

Electrical durability

20000 cycles conforming to IEC 60947-5-4

Connections - terminals

  • spring-loaded terminal Ti24 (top) 1 cable(s) 0.5-1.5 mm² - rigid
  • spring-loaded terminal Ti24 (top) 1 cable(s) 0.5-1.5 mm² - flexible

Wire stripping length

10 mm

Relative humidity

93 % at 40 °C

Ambient air temperature for operation

-25...70 °C

Ambient air temperature for storage

-40...85 °C

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP091004EN

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Package 2 bare product quantity

12

Package 3 bare product quantity

108

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

OF+SD 24

Signal contacts composition

1 NO + 1 NC

9 mm pitches

1

Quality labels

CE

[ui] rated insulation voltage

500 V conforming to IEC 60664-1

[uimp] rated impulse withstand voltage

6 kV conforming to IEC 60664-1

Comb busbar and distribution block compatibility

bottom: YES

Compatibility code

OF+SD 24

Pollution degree

2 conforming to IEC 60664-1

Overvoltage category

III

Tropicalisation

2 conforming to IEC 60947-5-1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.000 cm

Package 1 width

2.000 cm

Package 1 length

9.500 cm

Package 1 weight

36.000 g

Unit type of package 2

BB1

Number of units in package 2

12

Package 2 height

8.400 cm

Package 2 width

10.000 cm

Package 2 length

23.500 cm

Package 2 weight

487.000 g

Unit type of package 3

S03

Number of units in package 3

108

Package 3 height

30.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

4.871 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

No

Halogen-free status

Product contains halogen above thresholds

Energy efficiency optimized

False

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Bvb

Accepted

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

Yes

Scip number

28bfb466-f950-4025-8655-16cfe4e6c6f3

Halogen-free status

Product contains halogen above thresholds

End of life manual availability

ENVEOLI1505007EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Product Brochures

  • Installation Instruction

  • Environmental Disclosure

  • End of Life Manual

  • Operating Manuals

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Acti9 OF/SD 24V MCB auxiliary switch - 3D CAD
ZIP

Acti9 OF/SD 24V MCB auxiliary switch - 3D CAD

VERSION

1.0

DATE

23 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 849.4 KB
Acti9 auxiliaries brochure
ZIP

Acti9 auxiliaries brochure

VERSION

2.0

DATE

02 Aug 2023

REVISION

2.0

DOWNLOAD (ZIP) 2.4 MB
multistandard protection for oem applications brochure multi9
ZIP

multistandard protection for oem applications brochure multi9

VERSION

2.0

DATE

13 Feb 2023

REVISION

2.0

DOWNLOAD (ZIP) 1 MB
Smart Panels: Embrace the future of power distribution (eBrochure)
PDF

Smart Panels: Embrace the future of power distribution (eBrochure)

VERSION

1.0

DATE

17 Apr 2019

REVISION

1.0

DOWNLOAD (PDF) 12.5 MB
Smart Panels - Connect your buildings to energy savings
PDF

Smart Panels - Connect your buildings to energy savings

VERSION

1.0

DATE

26 May 2016

REVISION

1.0

DOWNLOAD (PDF) 4.3 MB
Smart Panels - Connect your buildings to energy savings
PDF

Smart Panels - Connect your buildings to energy savings

VERSION

1.0

DATE

06 Mar 2016

REVISION

1.0

DOWNLOAD (PDF) 4.3 MB
OF+SD24 - Auxiliary for Multi9 - Instruction Sheet on Box
ZIP

OF+SD24 - Auxiliary for Multi9 - Instruction Sheet on Box

VERSION

1.0

DATE

18 Jun 2024

REVISION

1.0

DOWNLOAD (ZIP) 168.4 KB

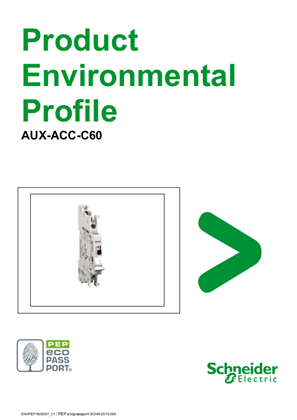

Auxiliary contacts for the C60 and C120 ranges - Product Environmental Profile
ZIP

Auxiliary contacts for the C60 and C120 ranges - Product Environmental Profile

VERSION

1.0

DATE

12 Oct 2023

REVISION

1.0

DOWNLOAD (ZIP) 188 KB

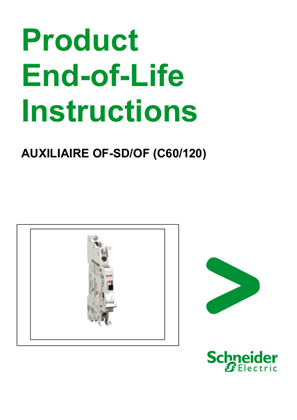

Multi9 - Auxiliary contacts OF-SD/OF for C60 and C120 - Product End-of-Life Instructions
