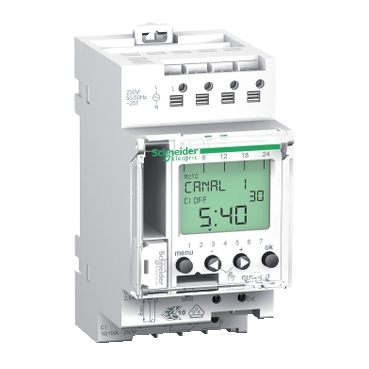

Acti9 1C Digital Time Switch 24 Hours + 7 Days

Item Number: CCT15721

1 PCE 0

IHP+ digital time switch Width of 45mm (5 modules of 9mm) Automatically switches On and Off loads according to the program entered by the user on weekly level Swiching cycle is 7 days (weekly) Number of switching operations: 84 Savings on mains cut off with battery reserve: 6 years Manual and remote override with are possible 1 channel output Programming could be done also with memory key and PC software

Where To Buy

Datasheet

Download

Product Dimensions

Width45 mm

Height85 mm

Depth66 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3303431062812	-

Specifications

Design

Range of product	Acti9
Range	Acti9
Product or component type	programmable digital time switch
Device application	building
Colour tint	white (RAL 9003)
Product compatibility	mechanical compatibility with electrical distribution comb busbars
Market segment	small commercial
Warranty	18 months

Physical

Number of channels	1
Provided equipment	memory key
[ue] rated operational voltage	230 V AC +/- 10 % at 50/60 Hz
Minimum interval duration	1 s
Function available	automatic winter/summer time changeover pulse programming
Backup time	6 years time and program saving
Type of setting	absence for holidays function random function
Connections - terminals	screwless terminals
Mounting support	DIN rail
Width	45 mm
Height	85 mm
Depth	66 mm
Ambient air temperature for operation	-10...50 °C
Ip degree of protection	IP20 B
Environmental disclosure	ENVPEP060104EN
Eu rohs directive	Compliant

Others

Certification number	NCC T04427-R1 - NET CONNECTION
Legacy weee scope	In
Package 1 bare product quantity	1
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	Acti9 IHP
Device short name	IHP
Battery type	lithium
User language	French Portuguese English Italian Spanish German
Power consumption in va	4 VA
Maximum switching current	10 A - 250 V AC pf = 0.6 16 A - 250 V AC pf = 1
Number of inputs	1 input(s) impulse and maintained
Accuracy	+/- 1 s/day 20 °C
Cycle duration	24 hours + 7 days
Maximum number of switchings	84
Display type	backlit LCD
Battery life	6 year(s)
9 mm pitches	5
Function	pulse programming and random function
Absence for holidays	yes
Time changeover	automatic
Updated by	none
Compatibility code	IHP
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7 cm
Package 1 width	8 cm
Package 1 length	10.5 cm
Package 1 weight	201 g
Sustainable packaging	No
End of life manual availability	ENVEOLI0601004EN
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
