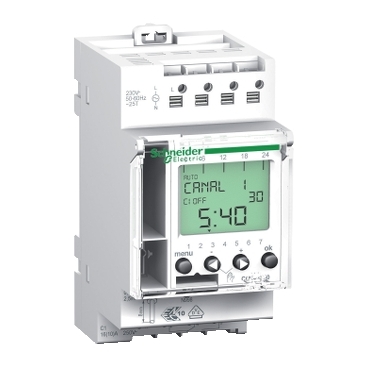

Acti9 1C digital time switch 24 hours + 7 days
Item Number: CCT15720
IHP digital time switch Width of 45mm (5 modules of 9mm) Automatically switches On and Off loads according to the program entered by the user on weekly level Swiching cycle is 7 days (weekly) Number of switching operations: 56 Savings on mains cut off with battery reserve: 6 years Manual override is possible 1 channel output
Specifications
Design
| Range of product | Acti9 |
|---|---|
| Range | Acti9 |
| Product or component type | programmable digital time switch |
| Device application | building |
| Colour tint | white (RAL 9003) |
| Product compatibility | mechanical compatibility with electrical distribution comb busbars |
| Warranty | 18 months |
Physical
| Number of channels | 1 |
|---|---|
| [ue] rated operational voltage | 230 V AC +/- 10 % at 50/60 Hz |
| Minimum interval duration | 1 min |
| Function available | automatic winter/summer time changeover |
| Backup time | 6 years time and program saving |
| Type of setting | absence for holidays function |
| Connections - terminals | screwless terminals |
| Mounting support | DIN rail |
| Width | 45 mm |
| Height | 85 mm |
| Depth | 66 mm |
| Ambient air temperature for operation | -10...50 °C |
| Ip degree of protection | IP20 B |
| Environmental disclosure | ENVPEP060104EN |
| Eu rohs directive | Compliant |
Documents & downloads
Filter items
-
All
-
CAD Files and Packs
-

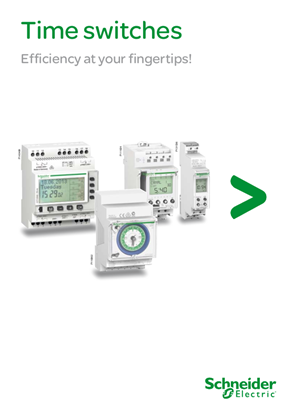

Product Brochures
-

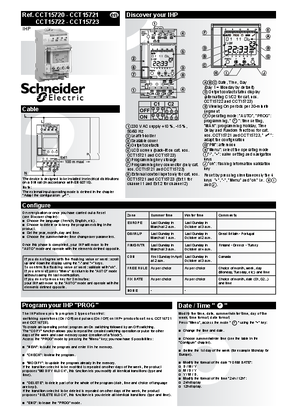

Operating Manuals
-

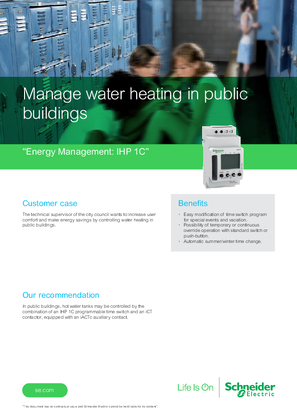

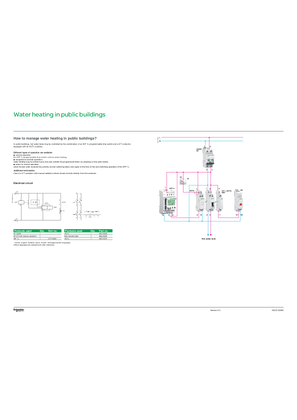

Application Notes
-

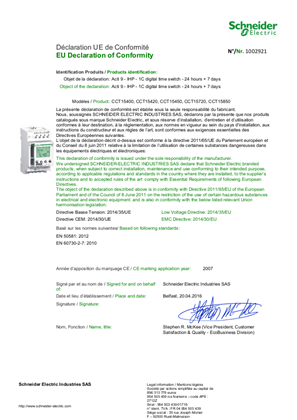

Declaration of Conformity
-
