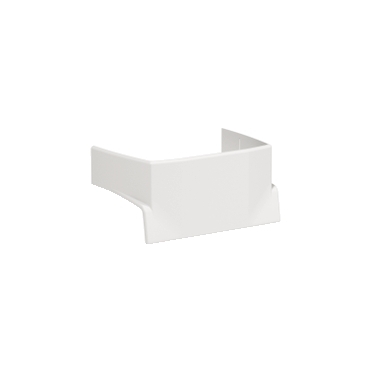

OptiLine 50 T-piece 100 x 63mm, PC/ABS, white

Home ProductsCable ManagementOptiLineT-piece

OptiLine 50 T-piece 100 x 63mm, PC/ABS, white

Item Number: INS12207

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

OptiLine 50

Product or component type

T-piece

Colour tint

white (RAL 9010)

Warranty

18 months

Physical

Quantity per set

1 piece

Length

121 mm

Height

52 mm

Width

63 mm

Ambient air temperature for operation

-25...60 °C

Ip degree of protection

IP40

Ik degree of protection

IK07

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP0909018EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

China rohs regulation

Product out of China RoHS scope

Eu rohs directive

Compliant

China rohs regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Material

Material

PC/ABS

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

Weee label

No

Warranty duration(in months) bmecat

18

At least in Europe

Trunking dimension

100 x 63 mm

Trunking material

  • aluminium
  • plastic

Cms inst product add info

for vertical trunking 100 and horizontal trunking 100, 120, 140

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.1 cm

Package 1 width

12.5 cm

Package 1 length

16.7 cm

Package 1 weight

30 g

Sustainable packaging

No

China rohs label

1

End of life manual availability

N/A

Warranty (in months)

18
Show all specifications
