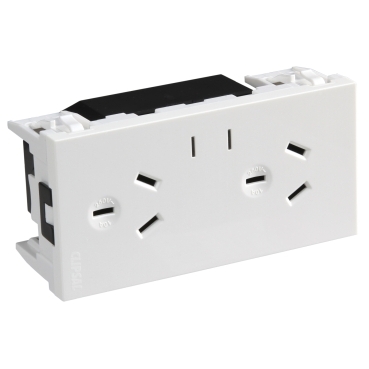

OptiLine 50 Socket outlet 16A twin fascia Vertical for Australian standard, White
Item Number: INS62024
Datasheet
Close
Specifications
Design
Range of product
OptiLine 50
Product or component type
socket-outlet
Colour tint
white (RAL 9010)
Physical
Outlet standard
Australian
Quantity per set
set of 5
Number of power socket outlets
2
Fixing mode
snap-fitted
Length
100 mm
Height
50 mm
Width
46.5 mm
Ambient air temperature for operation
-5...40 °C
Ip degree of protection
IP20
Reach free of svhc
Yes
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
Environmental disclosure
ENVPEP1408004EN
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Material
Material
PC/ABS
Others
Legacy weee scope
Out
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.65 cm
Package 1 width
4.96 cm
Package 1 length
9.95 cm
Package 1 weight
0.107 kg
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
Documents & downloads
hide showFilter items
-
All
-
Product Brochures
-
Technical Data Catalogues
-

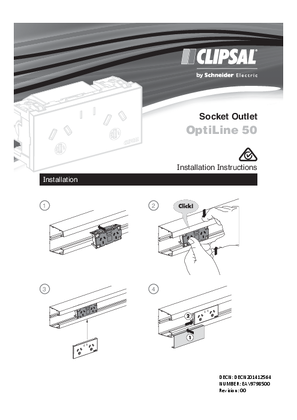

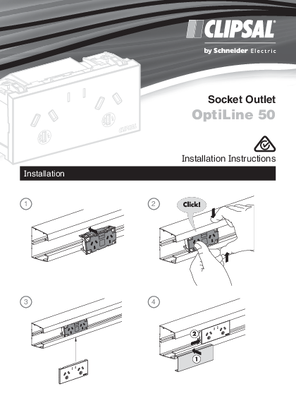

Installation Instruction
-
Environmental Disclosure
-
Specification Guide
-
Declaration of Conformity (Sustainability)
Important: Some software files may need a mySchneider or Club login to download.
