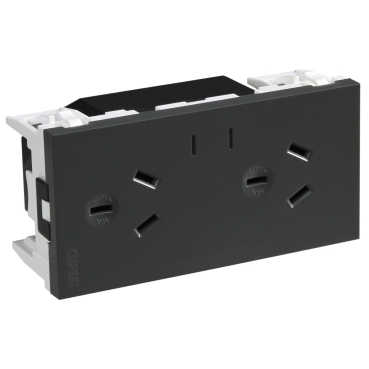

OptiLine 50 Socket outlet 16A twin fascia Vertical for Australian standard, Dark grey
Item Number: INS62023
Datasheet
Close
Specifications
Design
| Range of product | OptiLine 50 |
|---|---|
| Product or component type | socket-outlet |
| Colour tint | dark grey (RAL 7043) |
Physical
| Outlet standard | Australian |
|---|---|
| Quantity per set | set of 5 |
| Number of power socket outlets | 2 |
| Fixing mode | snap-fitted |
| Length | 100 mm |
| Height | 50 mm |
| Width | 46.5 mm |
| Ambient air temperature for operation | -5...40 °C |
| Ip degree of protection | IP20 |
| Reach free of svhc | Yes |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1408004EN |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
Material
| Material | PC/ABS |
|---|
