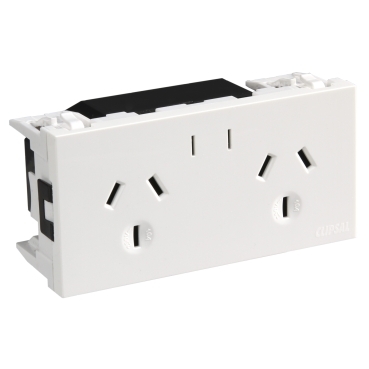

OptiLine 50, Socket outlet 16A, twin fascia Horizontal for Australian standard, White
Item Number: INS62021
Datasheet
Close
Specifications
Design
Range of product
OptiLine 50
Product or component type
socket-outlet
Colour tint
white (RAL 9010)
Sustainable offer status
Green Premium product
Physical
Outlet standard
Australian
Quantity per set
set of 5
Number of power socket outlets
2
Fixing mode
snap-fitted
Length
100 mm
Height
50 mm
Width
46.5 mm
Ambient air temperature for operation
-5...40 °C
Ip degree of protection
IP20
Reach regulation
Free of Substances of Very High Concern above the threshold
Reach free of svhc
Yes
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental disclosure
ENVPEP1408004EN
Circularity profile
N/A
Material
Material
PC/ABS
Others
Package 1 bare product quantity
1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.65 cm
Package 1 width
4.96 cm
Package 1 length
9.95 cm
Package 1 weight
0.107 kg
