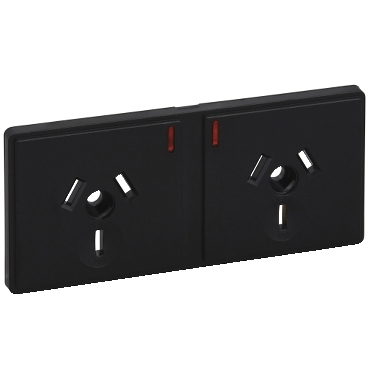

OptiLine Socket Fascia Assembly Twin | Black

Item Number: MM10SW-37-BK

Where To Buy

Datasheet

PDF datasheet

Download

Specifications

Design

Range of product

Optiline

Product brand

Clipsal

Product destination

socket-outlet

Physical

Marking

without marking

Mounting position

horizontal

Environmental disclosure

ENVPEP100109EN

Eu rohs directive

Not applicable, out of EU RoHS legal scope

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

Outside of Europe

Weee label

N/A

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

0.6 cm

Package 1 width

4.2 cm

Package 1 length

9.6 cm

Package 1 weight

0.018 kg

Sustainable packaging

No

End of life manual availability

N/A

Warranty (in months)

18
Show all specifications
