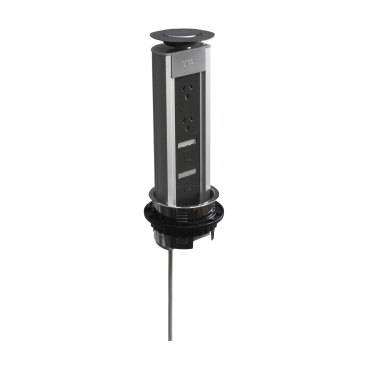

OptiLine 50 Service Box pop-up, 1x2 outlet, 2xRJ45 30 Mech/Keystone, AU
Item Number: INS43630
Datasheet
Close
Specifications
Design
Range
OptiLine 50
Range of product
OptiLine 50
Product or component type
service box
Colour tint
aluminium
Physical
Device presentation
complete product
Mounting mode
flush-mounted
Number of power socket outlets
1
Ambient air temperature for operation
-15...60 °C
Ip degree of protection
IP30
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Material
Material
- aluminium anodized
- aluminium powder coated
- zinc powder coated
Others
Legacy weee scope
Out
Package 1 bare product quantity
1
Weee label
N/A
Outside of Europe
Cms inst product add info
3 m power cable
Type of service box
pop-up
Outlet standard deviation
Australian
Number of data socket outlets
2 x RJ45 blind
Diameter
112 mm
Main colour tint
aluminium
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
15.4 cm
Package 1 width
17.3 cm
Package 1 length
63.6 cm
Package 1 weight
1.69 kg
Sustainable packaging
No
Warranty (in months)
18
Documents & downloads
hide showFilter items
-
All
-
Product Brochures
-
Technical Data Catalogues
-

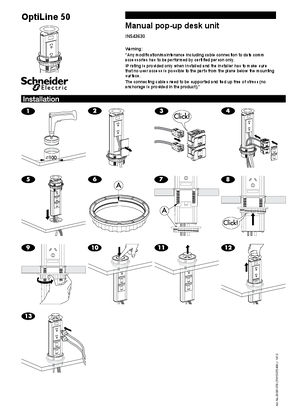

Operating Manuals
-
