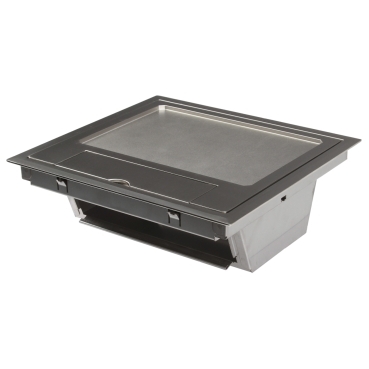

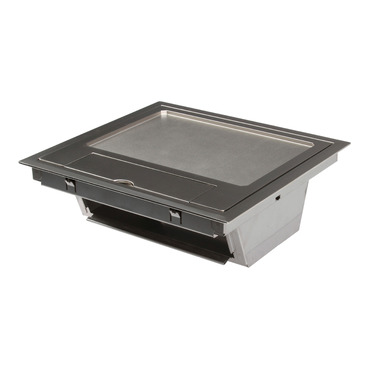

OptiLine 50 Recessed Lid 8 Module Carcass with Aluminium Alloy and SS Finish
Item Number: INS62032
Specifications
Design
Range
OptiLine
Range of product
OptiLine 50
Product or component type
floor outlet box
Colour tint
stainless steel
Physical
Device presentation
complete product
Device mounting
floor mounted
Height
91 mm
Width
255 mm
Depth
278 mm
Ik degree of protection
IK07
Ip degree of protection
IP20
Environmental disclosure
ENVPEP090933EN
Eu rohs directive
Not applicable, out of EU RoHS legal scope
Material
Material
- stainless steel zinc coated
- die cast aluminium
Others
Legacy weee scope
Out
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Product name
OptiLine 50
Device short name
OL50
Cabling installation system
floor box
Type of floor
- hollow core floor
- raised floor
- in-cavity floor
Floor box shape
rectangular
Number of modules
8 modules
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
21.5 cm
Package 1 width
32.8 cm
Package 1 length
36.3 cm
Package 1 weight
3.3 kg
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
