Specifications
Design
Range
OptiLine
Range of product

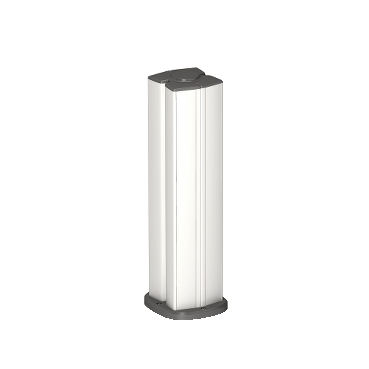

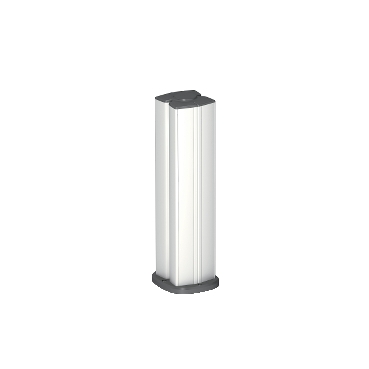

OptiLine 50
Product or component type
post
Colour tint
white (RAL 9010)
Physical
Device presentation
empty
Quantity per set
set of 1
Fixing mode
by screws
Marking
CE
Height
592 mm
Width
200 mm
Standards
EN 50085-1:2005|73/23/EEC|93/68/EEC
Product certifications
low voltage directive 73/23/EEC
Ambient air temperature for operation
-15...60 °C
Ip degree of protection
IP30
Eu rohs directive
Not applicable, out of EU RoHS legal scope
Material
Device composition
front cover|stop end|earth clamp|mounting instruction|floor fixing|gasket ring|strain relief|earth cable
Material
aluminium grey RAL 9007 conforming to EN-AW-6063|PC/ABS white RAL 9010 conforming to UL 94 HB
Others
Package 1 bare product quantity
1
Product name
OptiLine 50
Type of post
four-sided
Cover type
4 closed cover cover 50 mm in plastic coated
Pole/post surface finish
powder coated
Adjustment
fixed:
Cable cross section
13966 mm²
Compartment partitioning
4 compartments
Directives
2014/35/EU - low voltage directive
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
20 cm
Package 1 width
18 cm
Package 1 length
59.2 cm
Package 1 weight
4.18 kg
