Specifications
Design
Range
OptiLine
Range of product

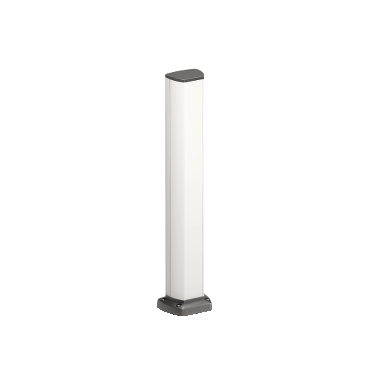

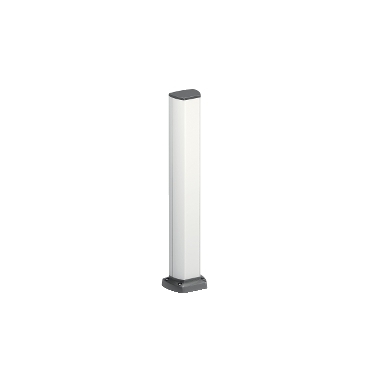

OptiLine 50
Product or component type
post
Colour tint
white (RAL 9010)
Physical
Device presentation
empty
Quantity per set
set of 1
Fixing mode
by screws
Marking
CE
Height
602 mm
Width
102 mm
Standards
- EN 50085-1:2005
- 73/23/EEC
- 93/68/EEC
Ambient air temperature for operation
-15...60 °C
Ip degree of protection
IP30
Eu rohs directive
Not applicable, out of EU RoHS legal scope
Material
Device composition
- front cover
- stop end
- earth clamp
- mounting instruction
- floor fixing
- gasket ring
- strain relief
- earth cable
Material
- aluminium grey RAL 9007 conforming to EN-AW-6063
- PC/ABS white RAL 9010 conforming to UL 94 HB
Others
Package 1 bare product quantity
1
Product name
OptiLine 50
Type of post
one-sided
Cover type
1 closed cover cover 50 mm in plastic coated
Pole/post surface finish
powder coated
Adjustment
fixed:
Cable cross section
4572 mm²
Compartment partitioning
1 compartment
Directives
2014/35/EU - low voltage directive
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
10.2 cm
Package 1 width
12.5 cm
Package 1 length
60.2 cm
Package 1 weight
1.33 kg
