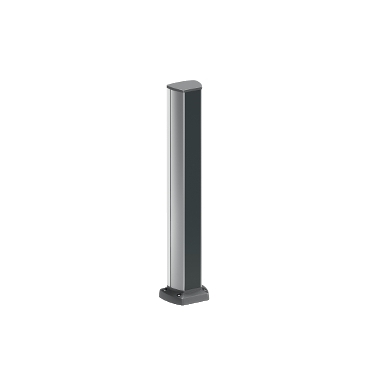

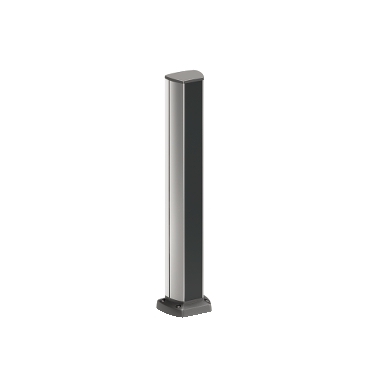

OptiLine 50, Post, 1-sided, empty, anodized, Australian

OptiLine 50, Post, 1-sided, empty, anodized, Australian

Item Number: INS43502

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

OptiLine

Range of product

OptiLine 50

Product or component type

post

Colour tint

anthracite (RAL 7043)

Physical

Device presentation

empty

Quantity per set

set of 1

Fixing mode

by screws

Marking

CE

Height

602 mm

Width

102 mm

Standards

<ul><li>EN 50085-1:2005</li><li>73/23/EEC</li><li>93/68/EEC</li></ul>

Ambient air temperature for operation

-15...60 °C

Ip degree of protection

IP30

Eu rohs directive

Not applicable, out of EU RoHS legal scope

Material

Device composition

<ul><li>front cover</li><li>stop end</li><li>earth clamp</li><li>mounting instruction</li><li>floor fixing</li><li>gasket ring</li><li>strain relief</li><li>earth cable</li></ul>

Material

<ul><li>aluminium grey RAL 9007 conforming to EN-AW-6063</li><li>PC/ABS grey RAL 7043 conforming to UL 94 HB</li></ul>

Others

Package 1 bare product quantity

1

Product name

OptiLine 50

Type of post

one-sided

Cover type

1 closed cover cover 50 mm in plastic untreated

Pole/post surface finish

anodized

Adjustment

fixed:

Cable cross section

4572 mm²

Compartment partitioning

1 compartment

Directives

2014/35/EU - low voltage directive

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

10.2 cm

Package 1 width

12.5 cm

Package 1 length

60.2 cm

Package 1 weight

1.33 kg
