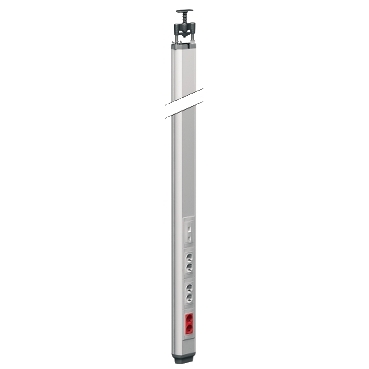

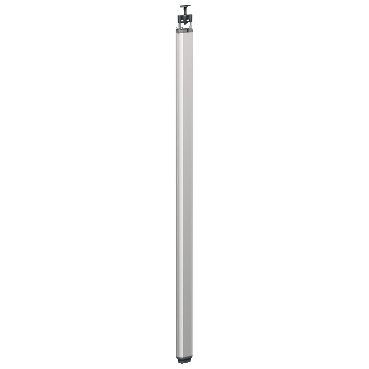

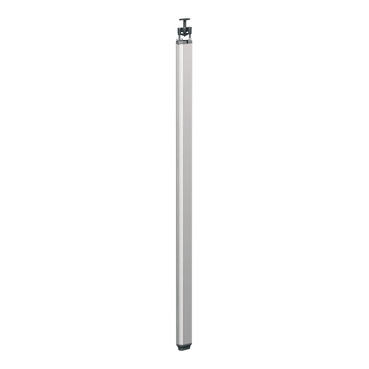

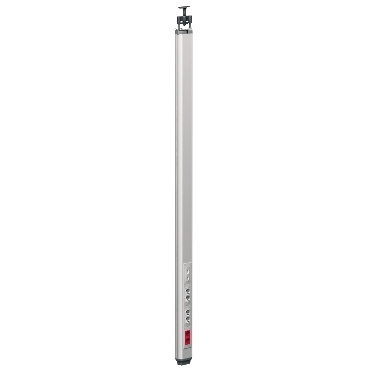

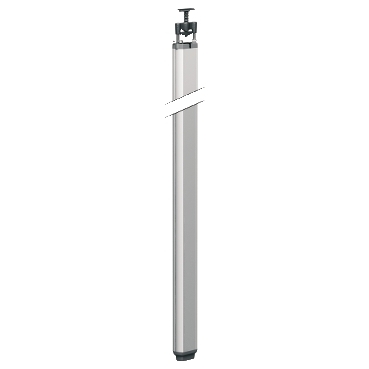

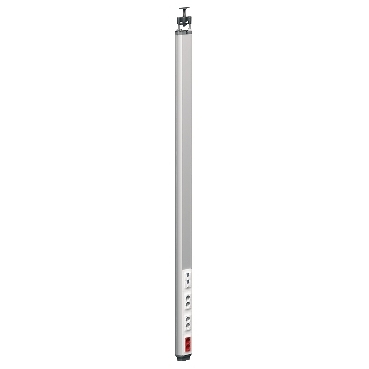

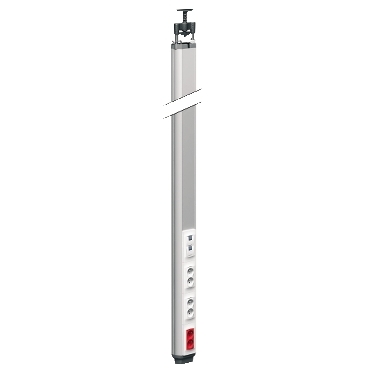

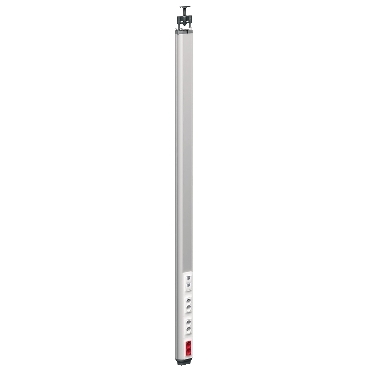

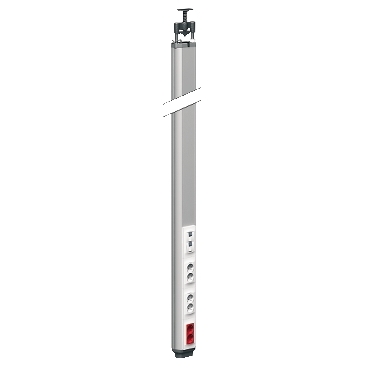

OptiLine 70 Pole tension-mounted, one-sided, natural, 4170-4570mm

Item Number: ISM20501

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width61 mm

Height4170...4570 mm

Depth120 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480029981	-

Specifications

Design

Range of product	OptiLine 70
Range	OptiLine
Product or component type	pole
Market segment	small commercial residential
Warranty	18 months

Physical

Quantity per set	set of 1
Height	4170...4570 mm
Depth	120 mm
Width	61 mm
Standards	73/23/EEC 93/68/EEC IEC 1084-2-4 SS 424 10 32 EN-AW-6063
Ambient air temperature for operation	-25...60 °C
Ip degree of protection	IP40
Environmental disclosure	ENVPEP060309EN
Eu rohs directive	Not Applicable/Out of Scope

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Product name	OptiLine 70
Cabling installation system	pole
Type of pole	one-sided
Pole/post surface finish	anodized
Pole fixing mode	tension-mounted
Cms inst product add info	adjustability of ceiling fixing 400 mm
Front opening size	70 mm
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	10.0 cm
Package 1 width	12.0 cm
Package 1 length	10.0 cm
Package 1 weight	7.2 kg
Unit type of package 2	PAL
Number of units in package 2	28
Package 2 height	64.9 cm
Package 2 width	120.0 cm
Package 2 length	256.0 cm
Package 2 weight	236.544 kg
Sustainable packaging	No
End of life manual availability	N/A
Warranty (in months)	18
